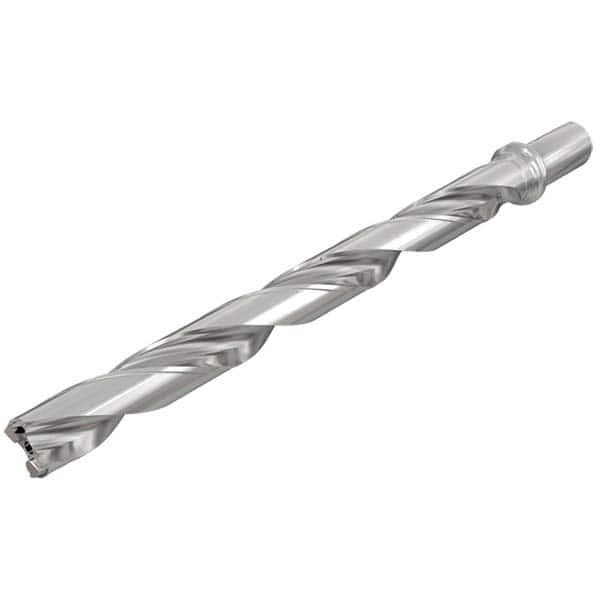

Replaceable Tip Drill: 33 to 36.9 mm Drill Dia, 393.3 mm Max Depth, 32 mm Weldon Flat Shank Uses MD-DFN & MD-DR-DH Inserts, Seat Size 6.8, 505 mm OAL, Through Coolant
Item #: 14345599
Brand: Iscar
Model #: 3335850
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.2992 |
| Minimum Drill Diameter (mm) | 33.00 |
| Maximum Drill Diameter (mm) | 36.90 |
| Maximum Drill Diameter (Decimal Inch) | 1.4528 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (mm) | 393.30 |
| Maximum Drill Depth (Decimal Inch) | 15.4843 |
| Shank Type | Weldon Flat |
| Insert Style | MD-DR-DH; MD-DFN |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Seat Size | 6.8 |
| Shank Diameter (mm) | 32.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 8.0000+ |
| Maximum Drill Depth Range (mm) | 200.00 |
| Compatible Insert Style | MD-DR-DH; MD-DFN |
| Overall Length (mm) | 505.00 |
| Series | ModuDrill |
| Toolholder Style | MD |
| Body Length (Decimal Inch) | 17.5197 |
| Body Length | 445.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Shank Length (mm) | 60.00 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
