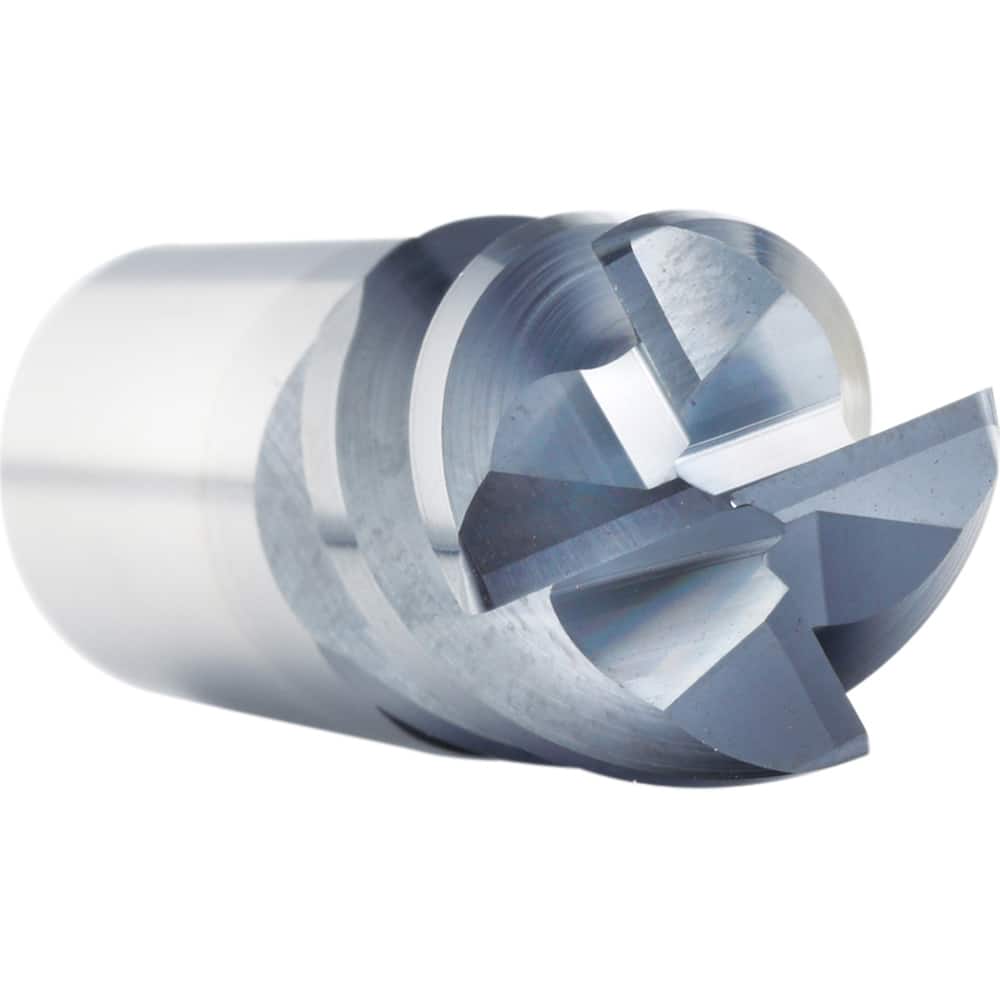

Square End Mill: 1/8'' Dia, 1/4'' LOC, 1/8'' Shank Dia, 1-1/2'' OAL, 4 Flutes, Solid Carbide Single End, AlTiN Finish, Helical Flute, Centercutting, RH Cut, Series XP-NB
Item #: 14221691
Brand: Supermill
Model #: XP125SA
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 1-1/2 |
| Helix Angle | 45 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.3000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.2500 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Shank Diameter Tolerance | h6 |
| Mill Diameter Tolerance | +0.000 to -0.002 in |
| Overall Length Tolerance | +0.050/-0.000 in |
| Series | XP-NB |
