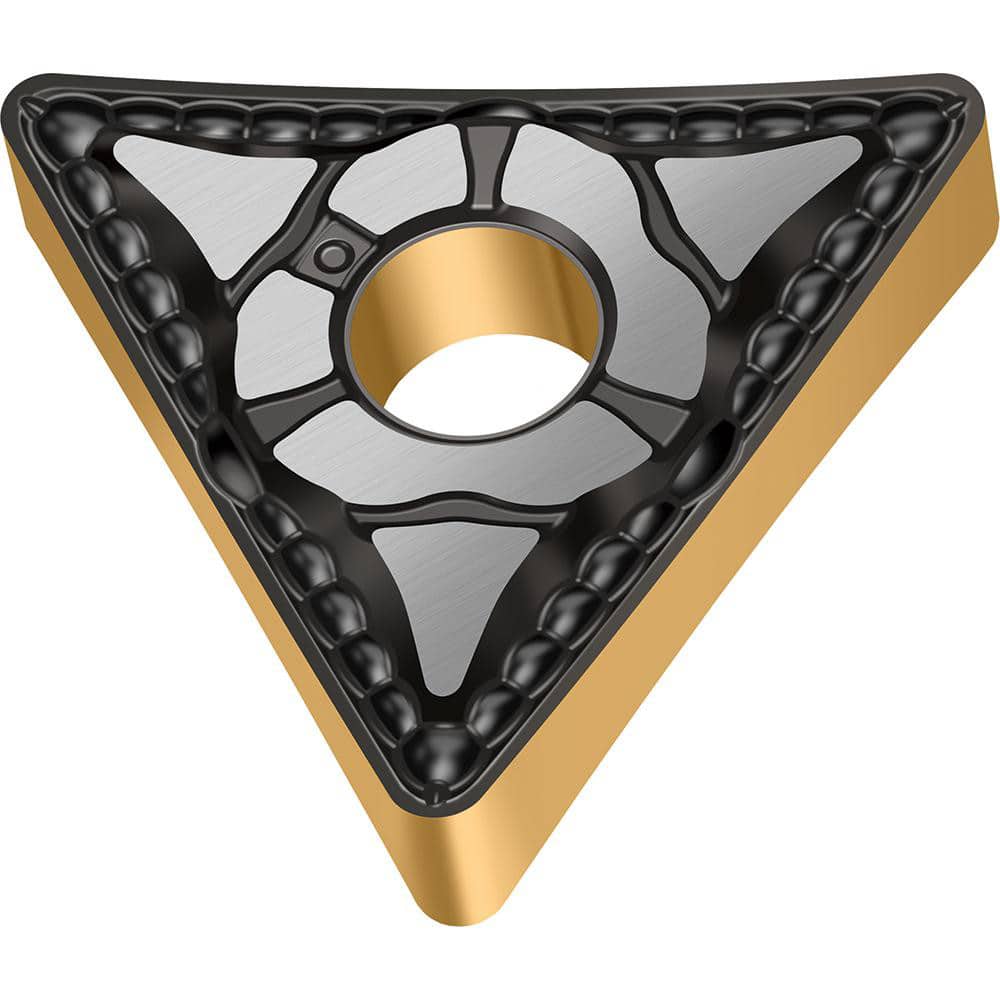

Turning Insert: TNMG221-MP3 WPP20G, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.4330″ Long, 1/4″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TNMG-MP3
Item #: 14084818
Brand: Walter
Model #: 8115993
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 221 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WPP20G |
| Hole Diameter (Decimal Inch) | 0.0890 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNMG-MP3 |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4330 |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | TNMG221MP3WPP20G |
| Iso Code | TNMG110304-MP3 WPP20G |
| Chip Breaker | MP3 |
| Coating/Finish | TiCN; TiN; Al2O3 |
