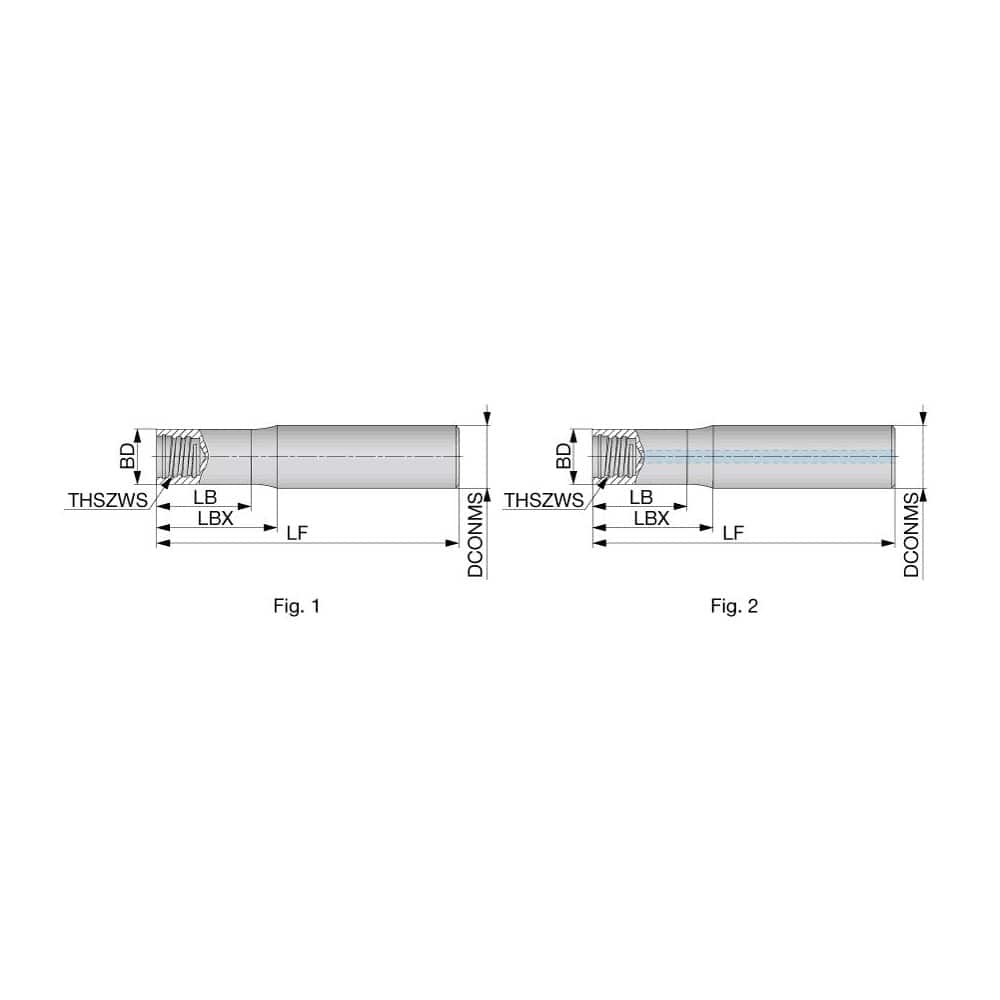

Replaceable Tip Milling Shank: Series VSS, 1″ Straight Shank S15 Neck Thread, 0.957″ Neck Dia, Solid Carbide
Item #: 14061535
Brand: Tungaloy
Model #: 6717410
Product Specifications
| Overall Length (Decimal Inch) | 10.0000 |
| Neck Diameter (Decimal Inch) | 0.9570 |
| Neck Thread Size | S15 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.9570 |
| Toolholder Style | VSS |
| Tool Material | Solid Carbide |
| Series | VSS |
| Head Length (Decimal Inch) | 6.0000 |
| Tip Connection Size | S15 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| For Use With | Tungmeister |
