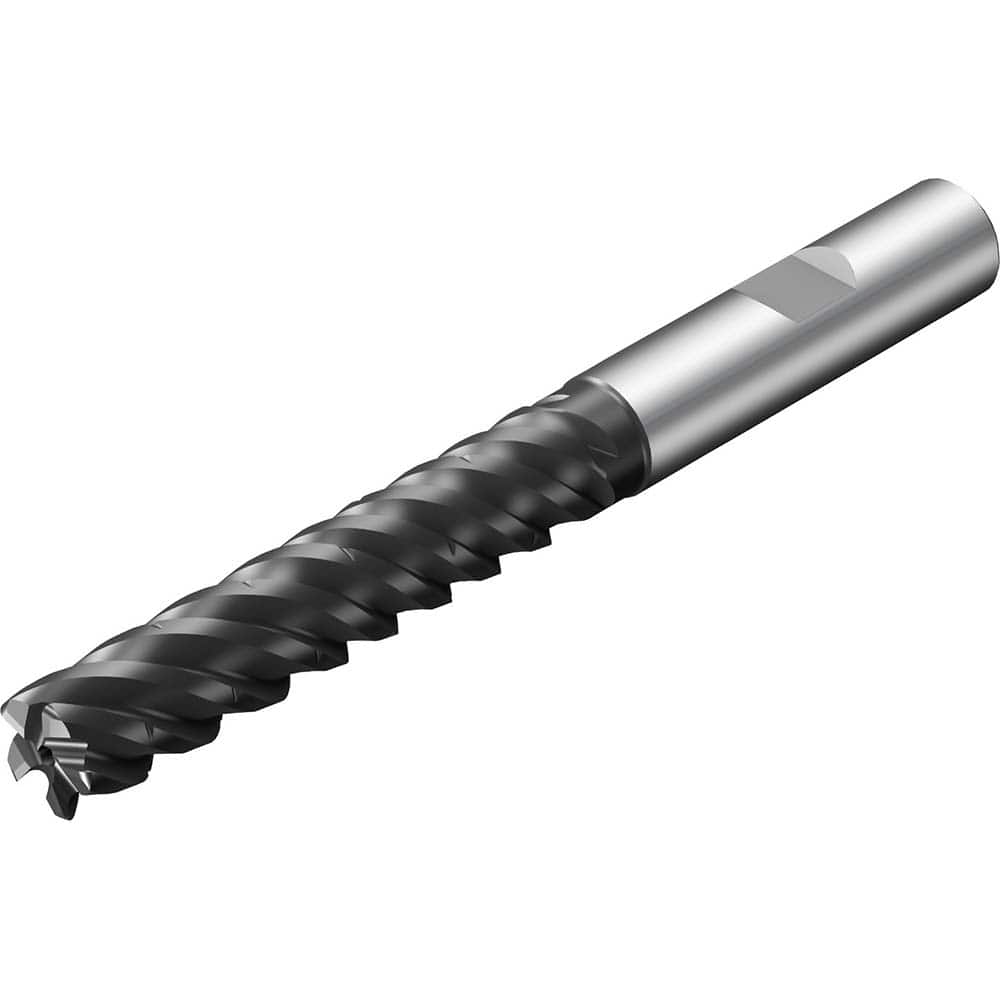

Sandvik Coromant - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 0.625 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (mm): 1.53 ; Corner Radius (Decimal Inch): 0.06 ; Number of Flutes: 5
Item #: 13913579
Brand: Sandvik Coromant
Model #: 7963647
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 0.625 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (mm): 1.53 ; Corner Radius (Decimal Inch): 0.06 ; Number of Flutes: 5
| Mill Diameter (Inch) | 0.625 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Type | Corner Radius |
| Corner Radius (mm) | 1.53 |
| Corner Radius (Decimal Inch) | 0.06 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | TiAlSiN |
| Length of Cut (Decimal Inch) | 3.1248 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 5.5 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 42 |
| Variable Index | No |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | No |
| Shank Type | Weldon |
| Series/List | CoroMill Plura |
