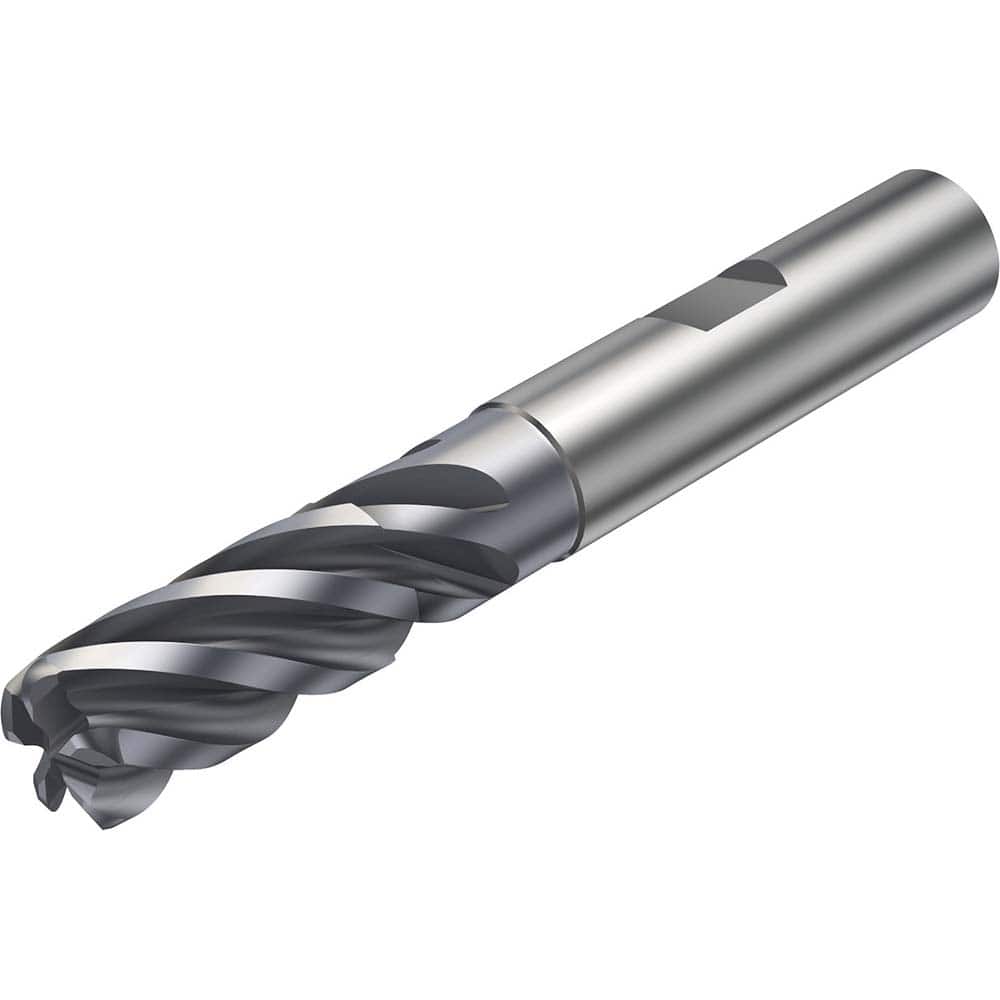

Sandvik Coromant - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 16.00 ; Mill Diameter (Decimal Inch): 0.6300 ; End Type: Corner Radius ; Corner Radius (mm): 0.5 ; Corner Radius (Decimal Inch): 0.02 ; Number of Flutes: 5
Item #: 13913199
Brand: Sandvik Coromant
Model #: 7716316
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 16.00 ; Mill Diameter (Decimal Inch): 0.6300 ; End Type: Corner Radius ; Corner Radius (mm): 0.5 ; Corner Radius (Decimal Inch): 0.02 ; Number of Flutes: 5
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6300 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.5 |
| Corner Radius (Decimal Inch) | 0.02 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Length of Cut (mm) | 34.0000 |
| Shank Diameter (mm) | 16.0000 |
| Overall Length (mm) | 92.0000 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Index | No |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | No |
| Shank Type | Weldon |
| Series/List | CoroMill Plura |
