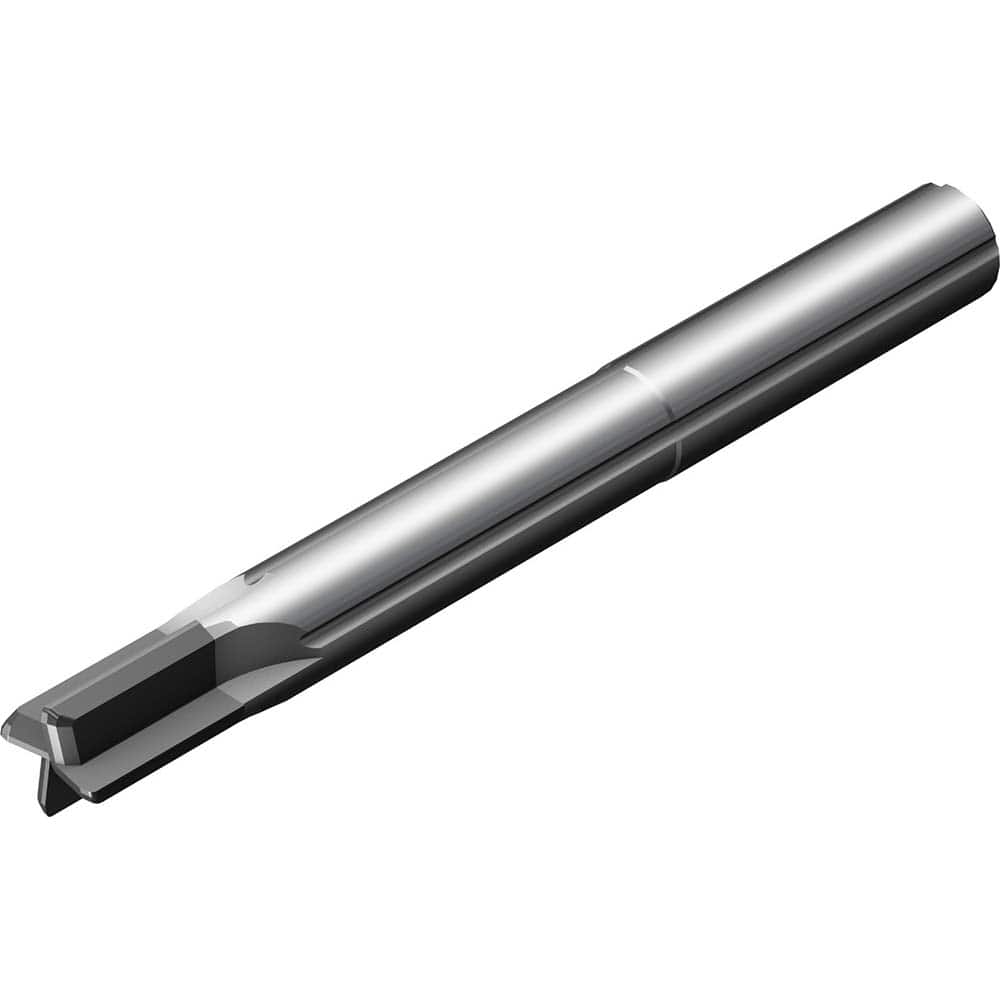

Sandvik Coromant - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 12.00 ; Mill Diameter (Decimal Inch): 0.4720 ; End Type: Corner Chamfer ; Chamfer Width (mm): 1.440 ; Number of Flutes: 4 ; Material: Solid Carbide
Item #: 13912811
Brand: Sandvik Coromant
Model #: 7990646
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 12.00 ; Mill Diameter (Decimal Inch): 0.4720 ; End Type: Corner Chamfer ; Chamfer Width (mm): 1.440 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (mm) | 12.00 |
| Mill Diameter (Decimal Inch) | 0.4720 |
| End Type | Corner Chamfer |
| Chamfer Width (mm) | 1.440 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Length of Cut (mm) | 3.9600 |
| Shank Diameter (mm) | 12.0000 |
| Overall Length (mm) | 116.5000 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 0 |
| Variable Index | No |
| Variable Helix | No |
| Chamfer Angle | 10.000 |
| Single or Double End | Single |
| Centercutting | No |
| Shank Type | Straight |
| Series/List | CoroMill Plura |
