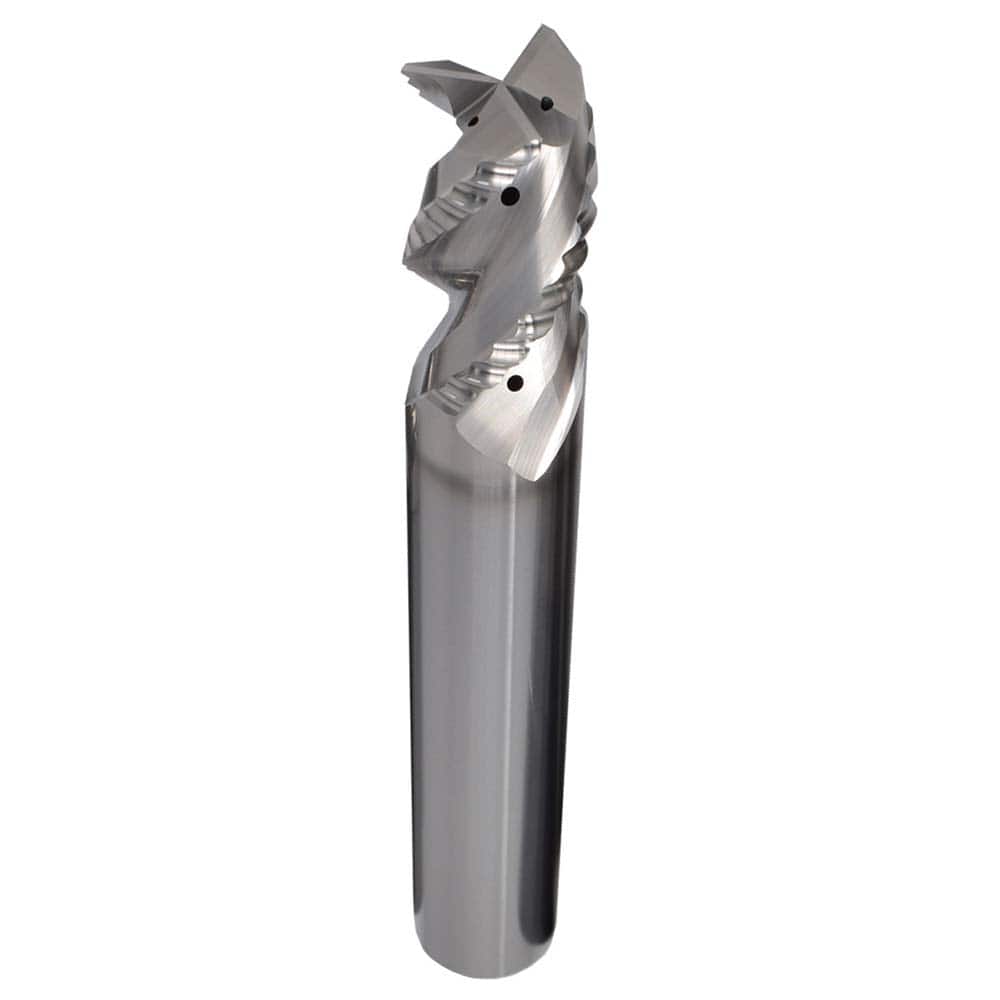

SGS - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 20.00 ; Mill Diameter (Decimal Inch): 0.7874 ; End Type: Corner Radius ; Corner Radius (mm): 4 ; Number of Flutes: 3 ; Material: Solid Carbide
Item #: 13908058
Brand: SGS
Model #: 45023
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 20.00 ; Mill Diameter (Decimal Inch): 0.7874 ; End Type: Corner Radius ; Corner Radius (mm): 4 ; Number of Flutes: 3 ; Material: Solid Carbide
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| End Type | Corner Radius |
| Corner Radius (mm) | 4 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | TI-NAMITE-B |
| Length of Cut (mm) | 35.0000 |
| Shank Diameter (mm) | 20.0000 |
| Overall Length (mm) | 125.0000 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Reach Length (mm) | 84.00 |
| Neck Diameter (mm) | 19.000 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 38 |
| Length Type | Extended |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | +0.010/-0.050 |
| Corner Radius Tolerance (mm) | +0.000 to -0.030 |
| Shank Diameter Tolerance (mm) | h6 |
| Extended Reach | Yes |
| Overall Length Tolerance (mm) | 0.062 to -0.062 |
| Shank Type | Straight |
| PSC Code | 3455 |
| Series/List | APR |
