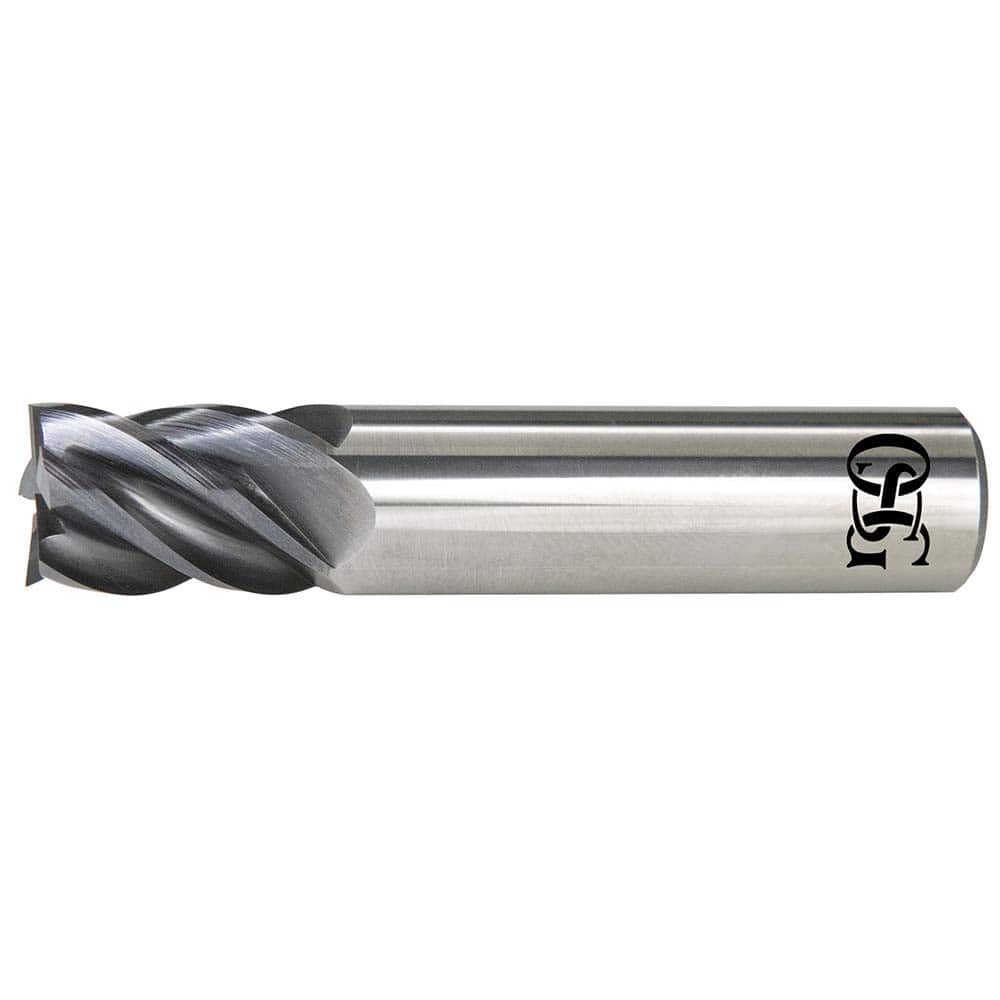

Corner Radius End Mill: 0.2813″ Dia, 27/64″ LOC, 0.02″ Radius, 5 Flutes, Solid Carbide 2-1/2″ OAL, 9/32″ Shank Dia, 40 ° Helix, EXO Coated, Corner Radius End, Series VGM5
Item #: 13849088
Brand: OSG
Model #: VGM5-0074
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2813 |
| Length of Cut (Inch) | 27/64 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Stub |
| Flute Type | Helical |
| Helix Angle | 40 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 9/32 |
| Overall Length (Inch) | 2-1/2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | VGM5 |
| Proprietary Coating Designation | EXO |
| Single Or Double End | Single |
| Coating/Finish | EXO |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4219 |
