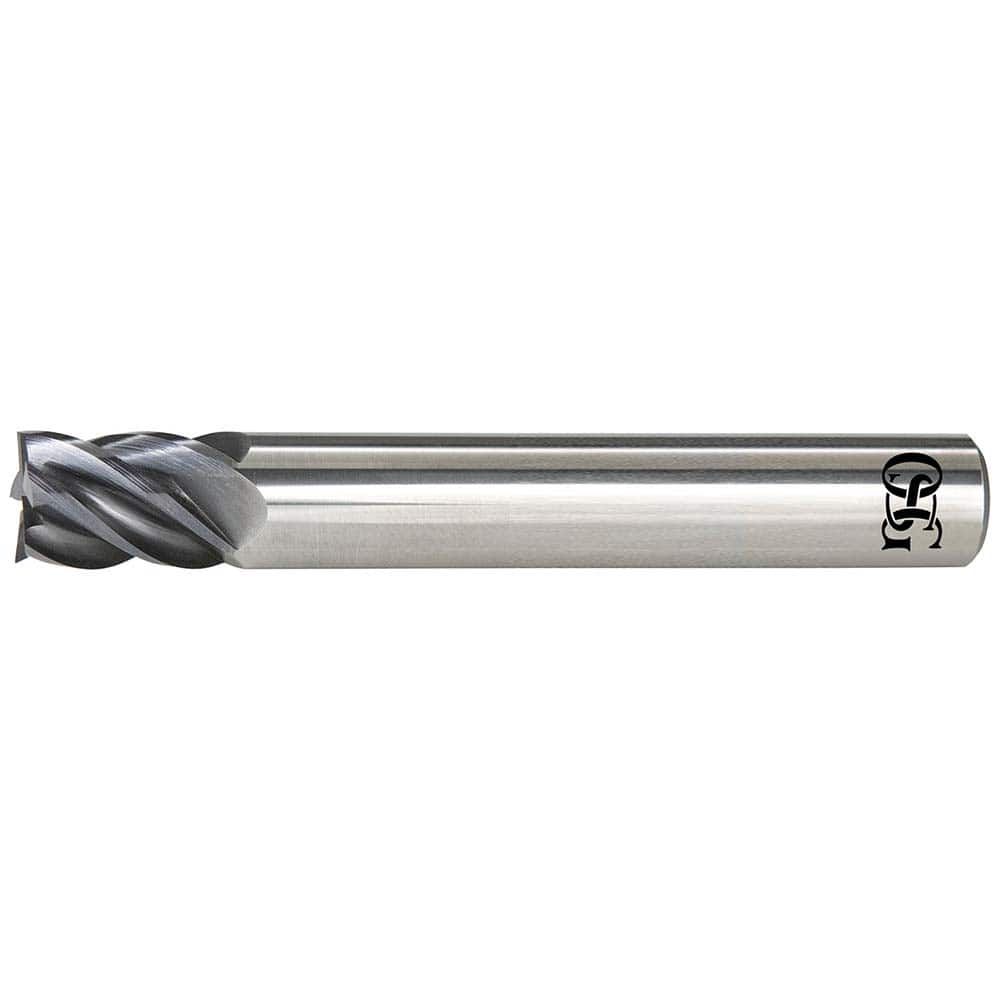

OSG - VGM5-LN 3/4" Diam 5-Flute Carbide 1/4" Corner Radius End Mill
Item #: 13846951
Brand: OSG
Model #: VGM5-1174
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 0.25 |
| Number of Flutes | 5 |
| Material | Carbide |
| Finish/Coating | EXO |
| Length of Cut (Inch) | 15/16 |
| Length of Cut (Decimal Inch) | 0.9375 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 6 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 40 |
| Neck Diameter (Decimal Inch) | 0.7120 |
| Single or Double End | Single |
| Length Type | Regular |
| Centercutting | Center Cutting |
| Flute Direction | Right |
| Extended Reach | NonExtendedReach |
| Shank Type | Round |
| Series/List | VGM5-LN |
