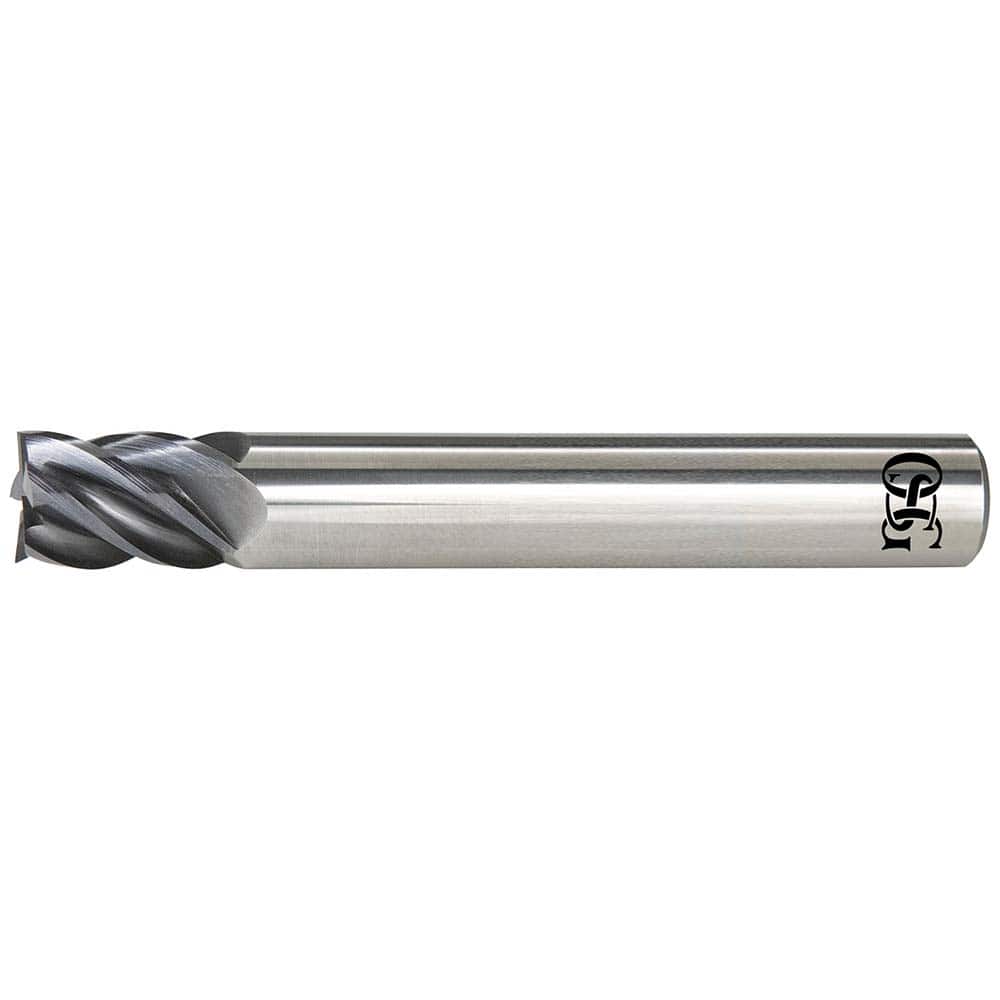

OSG - VGM5-LN 3/8" Diam 5-Flute Carbide 0.02" Corner Radius End Mill
Item #: 13844576
Brand: OSG
Model #: VGM5-1087
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 0.02 |
| Number of Flutes | 5 |
| Material | Carbide |
| Finish/Coating | EXO |
| Length of Cut (Inch) | 15/32 |
| Length of Cut (Decimal Inch) | 0.4688 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 6 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 40 |
| Neck Diameter (Decimal Inch) | 0.3560 |
| Single or Double End | Single |
| Length Type | Extra Long |
| Centercutting | Center Cutting |
| Flute Direction | Right |
| Extended Reach | NonExtendedReach |
| Shank Type | Round |
| Series/List | VGM5-LN |
