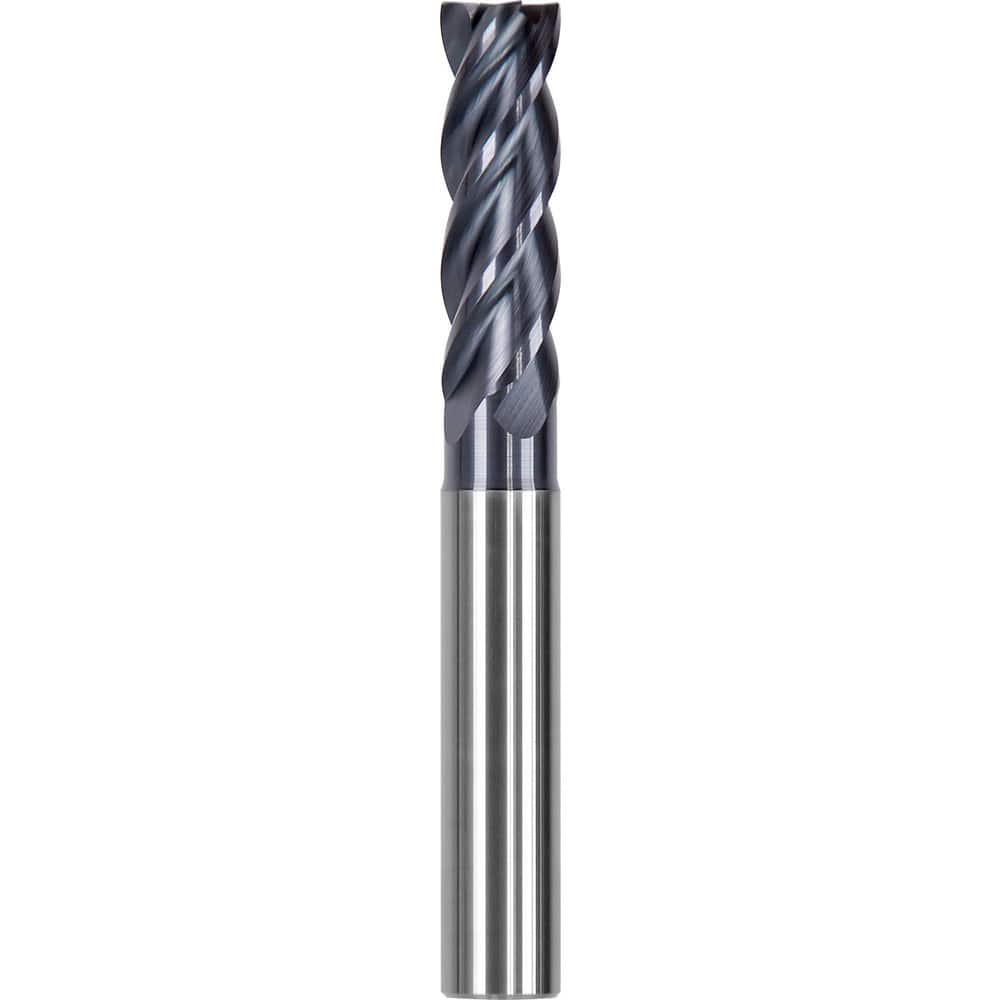

Corner Chamfer End Mill: 0.625″ Dia, 1.875″ LOC, 4 Flute, 0.0125″ Chamfer Width, Solid Carbide 4-1/2″ OAL, 5/8″ Shank Dia, AlTiN Coated, Centercutting
Item #: 13640511
Brand: HAIMER
Model #: H50164040
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Chamfer Width (Decimal Inch) | 0.0125 |
| Mill Diameter (Inch) | 5/8 |
| Chamfer Angle | 45 |
| Length of Cut (Inch) | 1-7/8 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | Yes |
| End Type | Single; Corner Chamfer |
| Length Type | Long |
| Flute Type | Helical |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (mm) | 4.50 |
| Overall Length (Decimal Inch) | 4.5000 |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.8750 |
