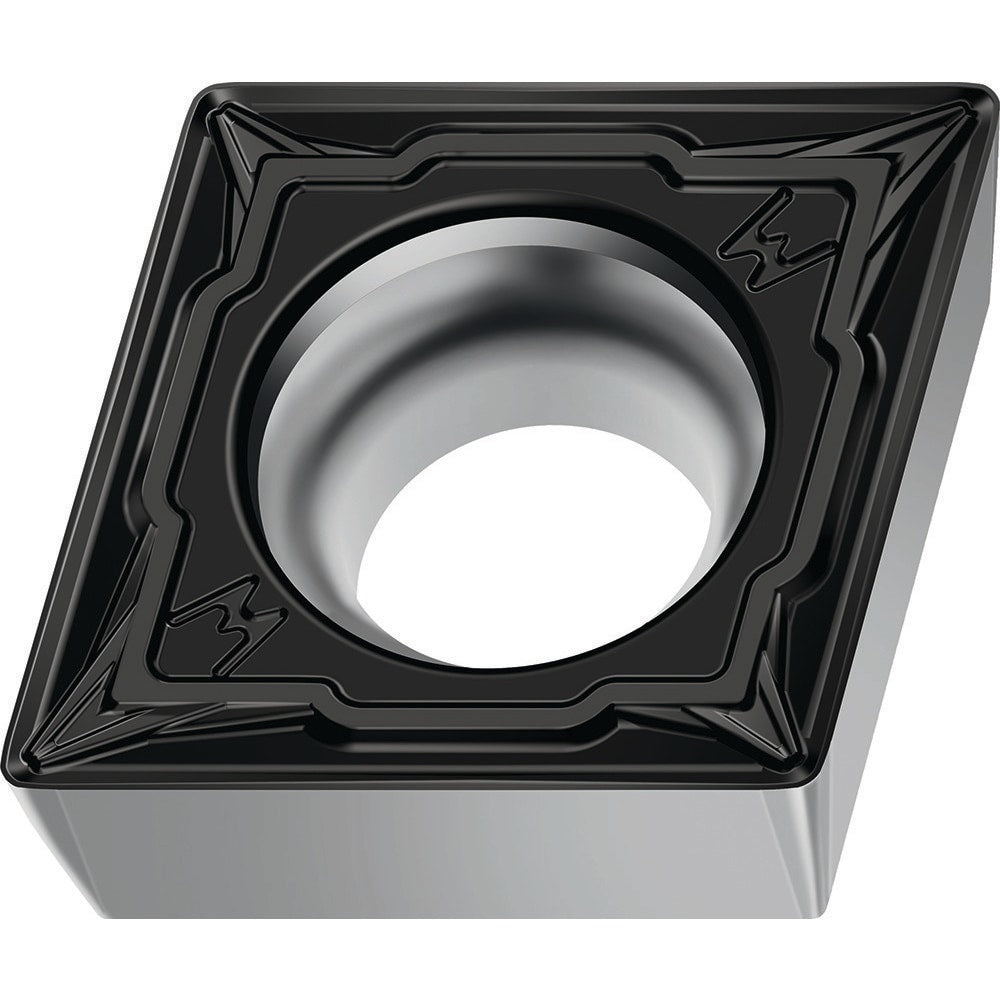

Turning Insert: CCMT21.51FW4 WSM30S, Carbide
Item #: 91648113
Brand: Walter
Model #: 8293229
Product Specifications
| ANSI Insert Code | CCMT2(1.5)1 |
| ISO Insert Code | CCMT060204 |
| Relief Angle | 7.000 |
| Insert Style | CCMT |
| Corner Radius (mm) | 0.40 |
| Included Angle | 80.00 |
| Manufacturer Grade | WSM30S |
| Coating/Finish | TiAlN+Al2O3+(Al) |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Series | CCMT |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 80° |
| Chip Breaker Operation | Wiper - Finishing |
| Grade Characteristics | Stainless Steel (M) - High Toughness; Steel (P) - High Toughness; Special, Super Alloys (S) - High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Length (mm) | 6.45 |
| Manufacturers Catalog Number | CCMT060204-FW4 WSM30S |
| Chip Breaker | FW4 |
| Width (mm - 2 Decimals) | 6.35 |
| ANSI Size Code | 2(1.5)1 |
| ISO Size Code | 060204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 06 |
| Country of Origin | Germany |
