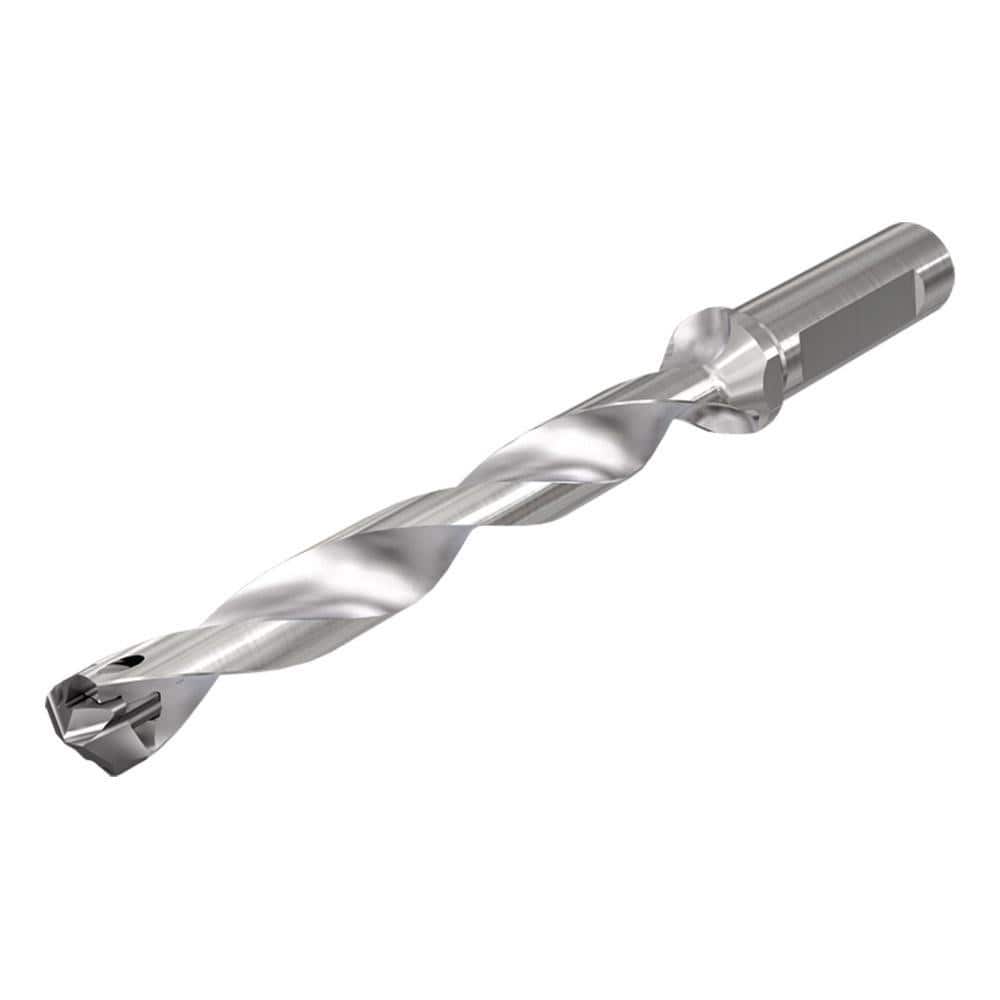

Replaceable Tip Drill: 29 to 29.9 mm Drill Dia, 236.43 mm Max Depth, 32 mm Flatted Shank Uses ICP Inserts, 337.8 mm OAL, Through Coolant
Item #: 13627666
Brand: Iscar
Model #: 3203225
Product Specifications
| Minimum Drill Diameter (mm) | 29.00 |
| Maximum Drill Diameter (mm) | 29.90 |
| Maximum Drill Depth (mm) | 236.43 |
| Shank Type | Flatted |
| Shank Diameter (mm) | 32.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 200.00 |
| Compatible Insert Style | ICP |
| Compatible Insert Size Code | 29 |
| Overall Length (mm) | 337.80 |
| Series | DCN |
| Toolholder Style | DCN |
| Flute Length (mm) | 236.43 |
| Body Length | 277.80 |
| Shank Length (mm) | 60.00 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Superalloy & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
