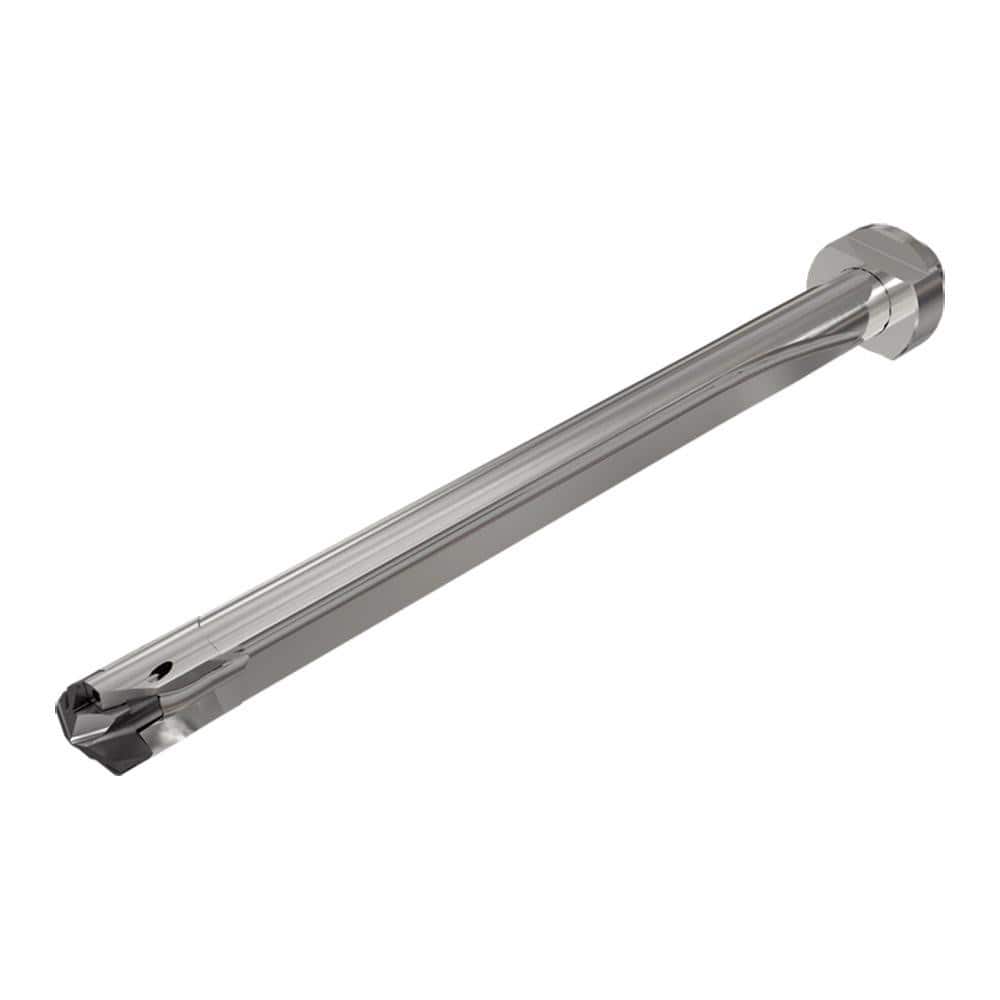

Replaceable Tip Drill: 14 to 14.4 mm Drill Dia, 400 mm Max Depth, Modular Connection Shank Uses HCP Inserts, 487.5 mm OAL, Through Coolant
Item #: 13627310
Brand: Iscar
Model #: 3350865
Product Specifications
| Minimum Drill Diameter (mm) | 14.00 |
| Maximum Drill Diameter (mm) | 14.40 |
| Maximum Drill Depth (mm) | 400.00 |
| Shank Type | Modular Connection |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 200.00 |
| Compatible Insert Style | HCP |
| Compatible Insert Size Code | 14 |
| Overall Length (mm) | 487.50 |
| Series | MNSNT |
| Toolholder Style | MNSNT |
| Flute Length (mm) | 400.00 |
| Body Length | 476.00 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Superalloy; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; K; N |
| Coolant Through | Yes |
