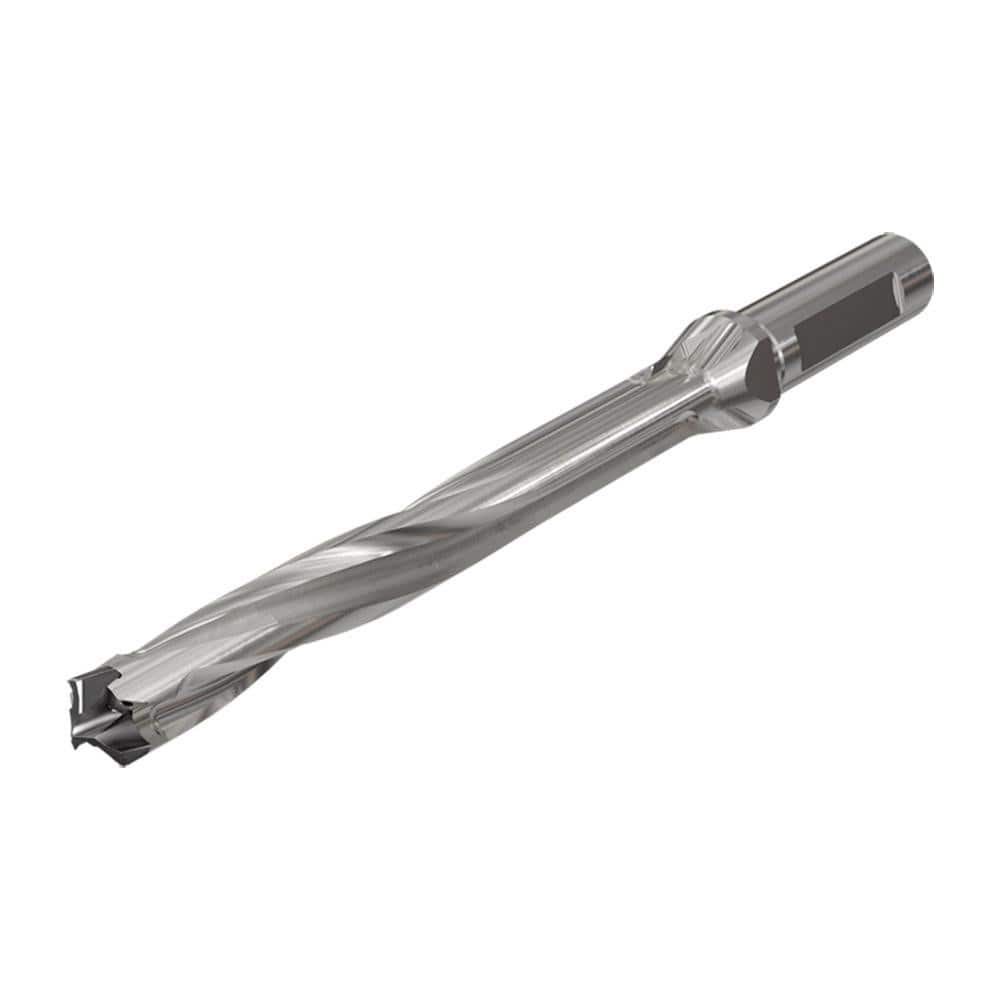

Replaceable Tip Drill: 24 to 24.9 mm Drill Dia, 197.21 mm Max Depth, 32 mm Flatted Shank Uses H3P Inserts, 301.5 mm OAL, Through Coolant
Item #: 13625512
Brand: Iscar
Model #: 3391769
Product Specifications
| Minimum Drill Diameter (mm) | 24.00 |
| Maximum Drill Diameter (mm) | 24.90 |
| Maximum Drill Depth (mm) | 197.21 |
| Shank Type | Flatted |
| Shank Diameter (mm) | 32.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 160.00 to 200.00 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 24 |
| Overall Length (mm) | 301.50 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (mm) | 197.21 |
| Body Length | 241.54 |
| Shank Length (mm) | 59.96 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
