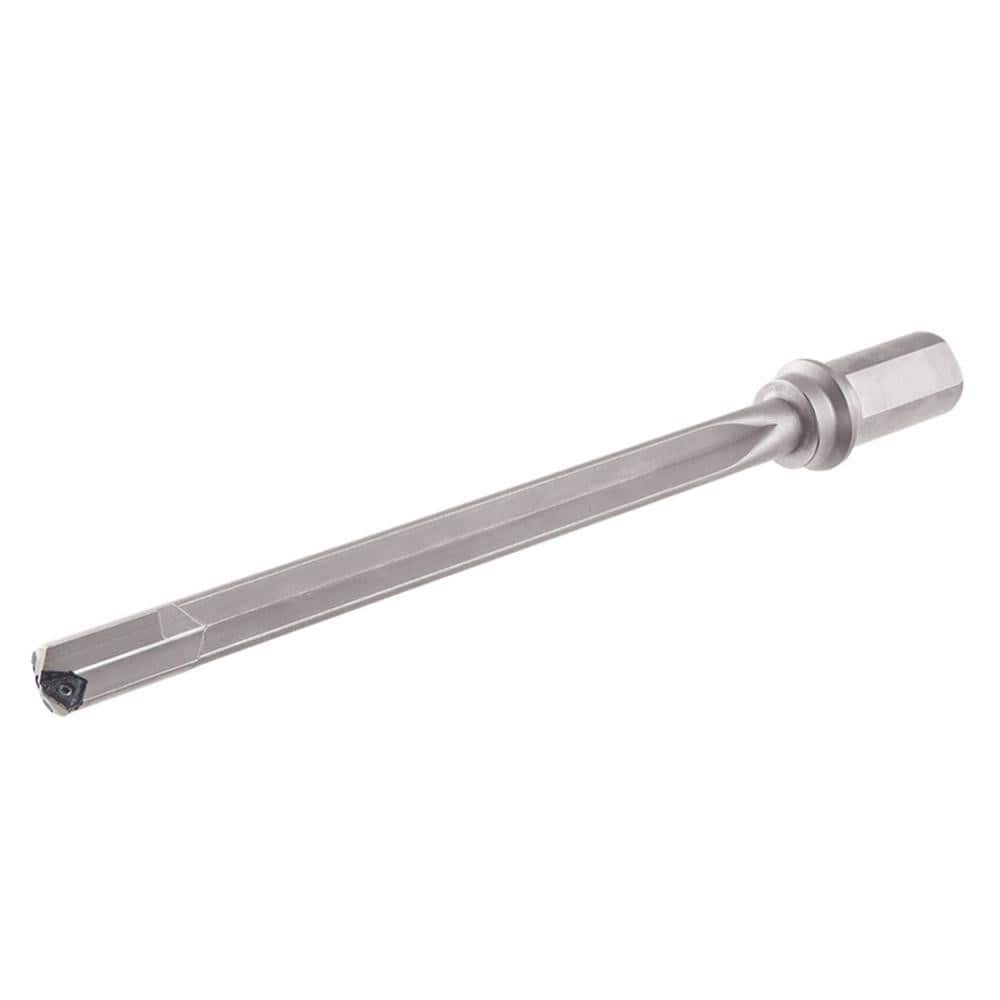

Indexable Insert Drills; Drill Style: GD-DH; Maximum Drill Diameter (Inch): 1-1/4; Maximum Drill Diameter (Decimal Inch): 1.2500; Maximum Drill Depth (Decimal Inch): 25.3760; Shank Type: Flatted; Shank Diameter (Inch): 1-1/2; Shank Diameter (Decimal Inch)
Item #: 13624929
Brand: Iscar
Model #: 4854364
Product Specifications
| Drill Style | GD-DH |
| Maximum Drill Diameter (Inch) | 1-1/4 |
| Maximum Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Depth (Decimal Inch) | 25.3760 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 1 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |
| Compatible Insert Style | TOGT |
| Compatible Insert Size Code | 130408 |
| Drill Depth by Diameter Ratio | 20xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 30.87 |
| Series | GD-DH |
| Flute Length (Decimal Inch) | 25.3760 |
| Shank Length (Decimal Inch) | 2.7200 |
| Minimum Achievable Hole Tolerance | -0.0028 in |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Coolant Through | Yes |
