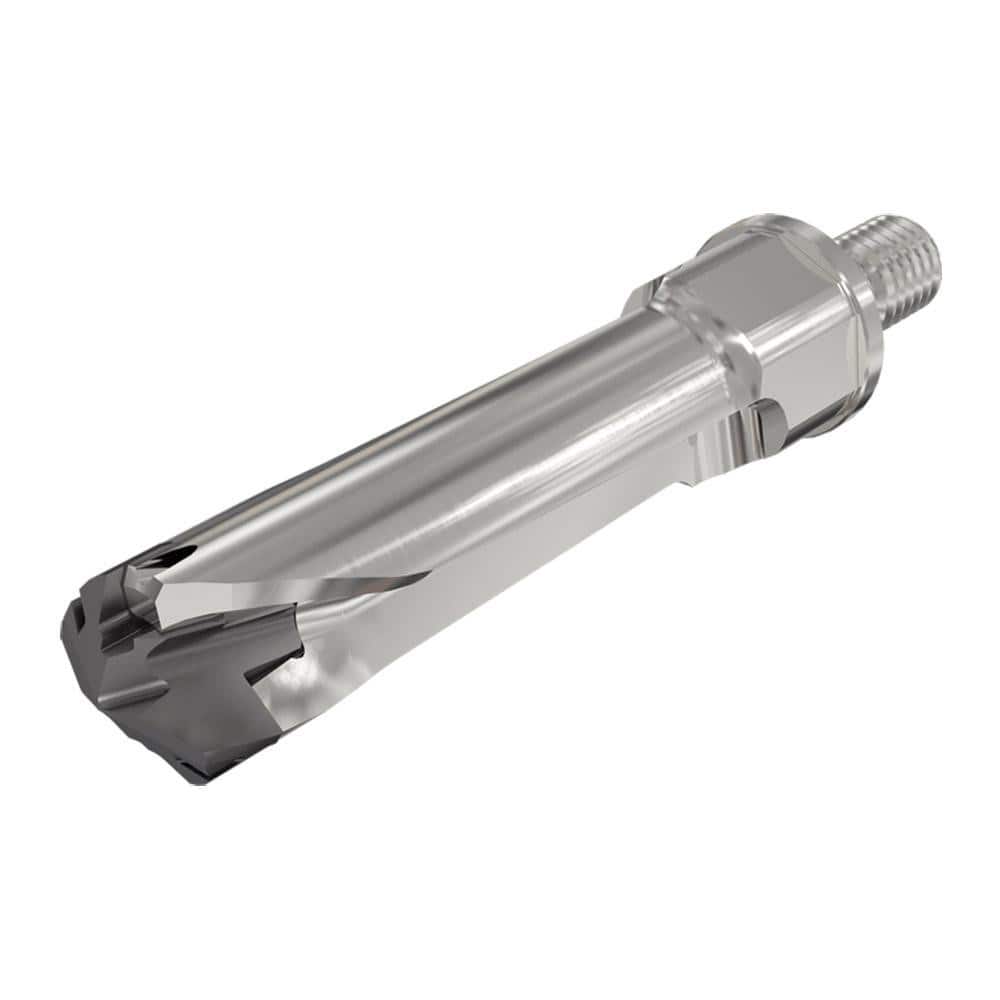

Replaceable Tip Drill: 9.5 to 9.9 mm Drill Dia, 34.8 mm Max Depth, Modular Connection Shank Uses ICP Inserts, 76.8 mm OAL, Through Coolant
Item #: 13624598
Brand: Iscar
Model #: 3352564
Product Specifications
| Minimum Drill Diameter (mm) | 9.50 |
| Maximum Drill Diameter (mm) | 9.90 |
| Maximum Drill Depth (mm) | 34.80 |
| Shank Type | Modular Connection |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Compatible Insert Style | ICP |
| Compatible Insert Size Code | 9 |
| Overall Length (mm) | 76.80 |
| Series | FLEXFIT |
| Toolholder Style | DCNM |
| Flute Length (mm) | 34.80 |
| Body Length | 54.80 |
| Shank Length (mm) | 22.00 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Superalloy & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
