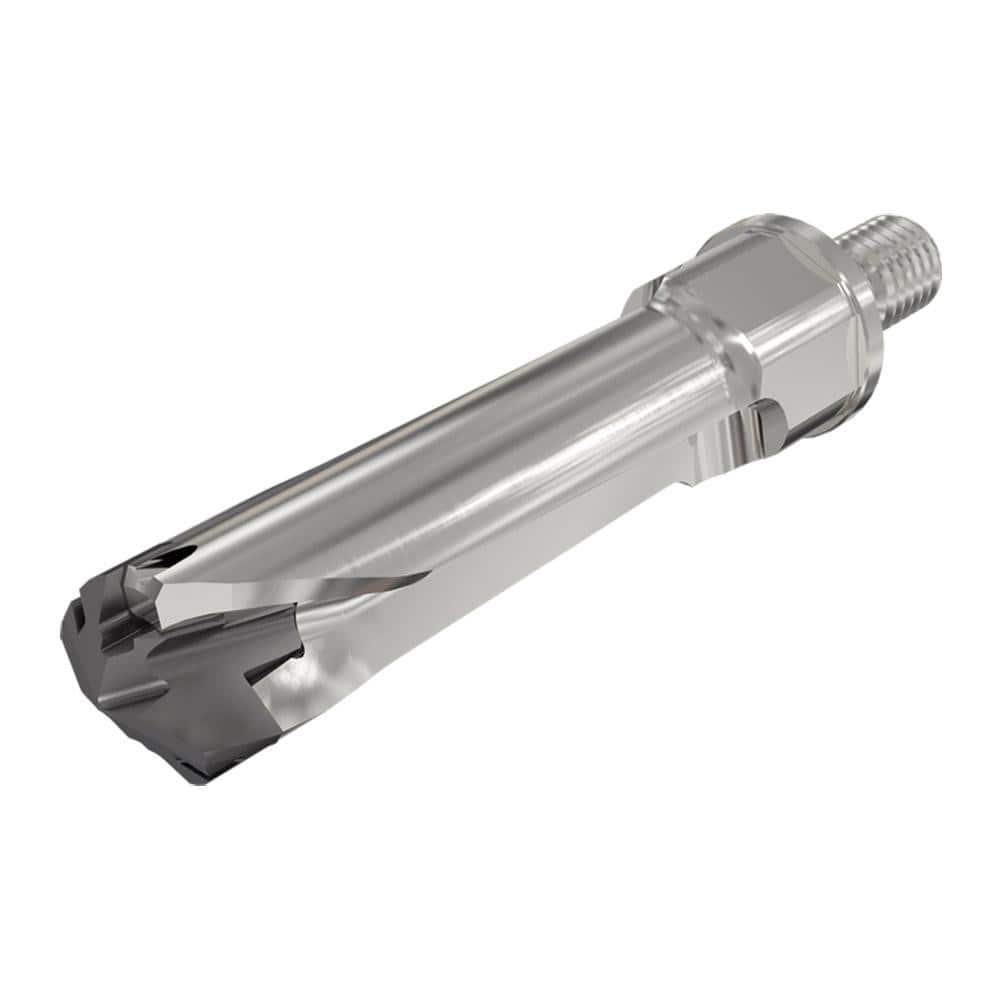

Replaceable Tip Drill: 13.5 to 13.9 mm Drill Dia, 48.6 mm Max Depth, Modular Connection Shank Uses ICP Inserts, 90.6 mm OAL, Through Coolant
Item #: 13624564
Brand: Iscar
Model #: 3352573
Product Specifications
| Minimum Drill Diameter (mm) | 13.50 |
| Maximum Drill Diameter (mm) | 13.90 |
| Maximum Drill Depth (mm) | 48.60 |
| Shank Type | Modular Connection |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | ICP |
| Compatible Insert Size Code | 13 |
| Overall Length (mm) | 90.60 |
| Series | FLEXFIT |
| Toolholder Style | DCNM |
| Flute Length (mm) | 48.60 |
| Body Length | 68.60 |
| Shank Length (mm) | 22.00 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Superalloy & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
