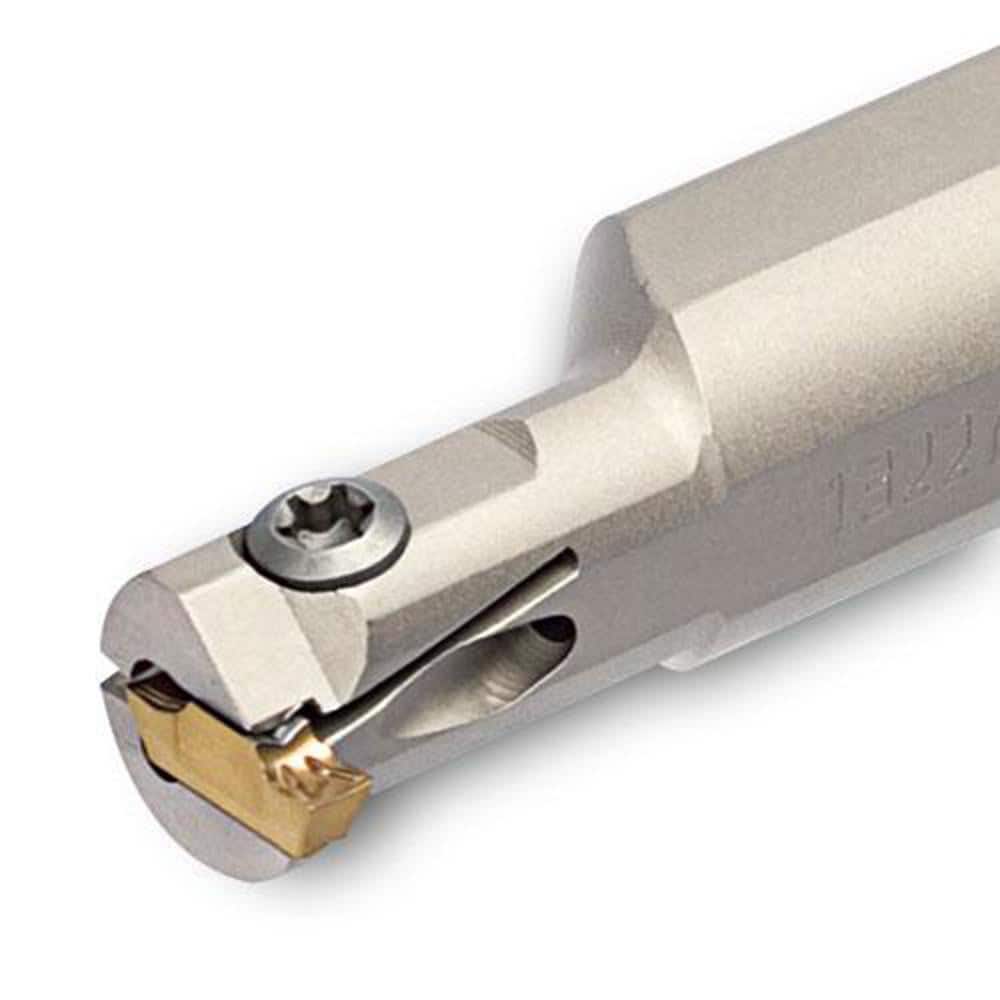

Indexable Grooving Toolholder: TTSIR12.7-14-3, 0.0940″ Max Groove Width 0.1020″ Max Depth, Uses TDI 3, SC*T 3 & TSL 3 Inserts, Through Coolant
Item #: 13577713
Brand: Ingersoll Cutting Tools
Model #: 6163890
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 3 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1020 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | TTSIR |
| Maximum Groove Width (Decimal Inch) | 0.0940 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TDI 3; TSL 3; SC*T 3 |
| Series | TTSI |
| Shank Length (Decimal Inch) | 3.6220 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Center to Cutting Edge (Decimal Inch) | 0.3600 |
| Minimum Hole Diameter (Decimal Inch) | 0.5510 |
| Head Length (Decimal Inch) | 1.3780 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
