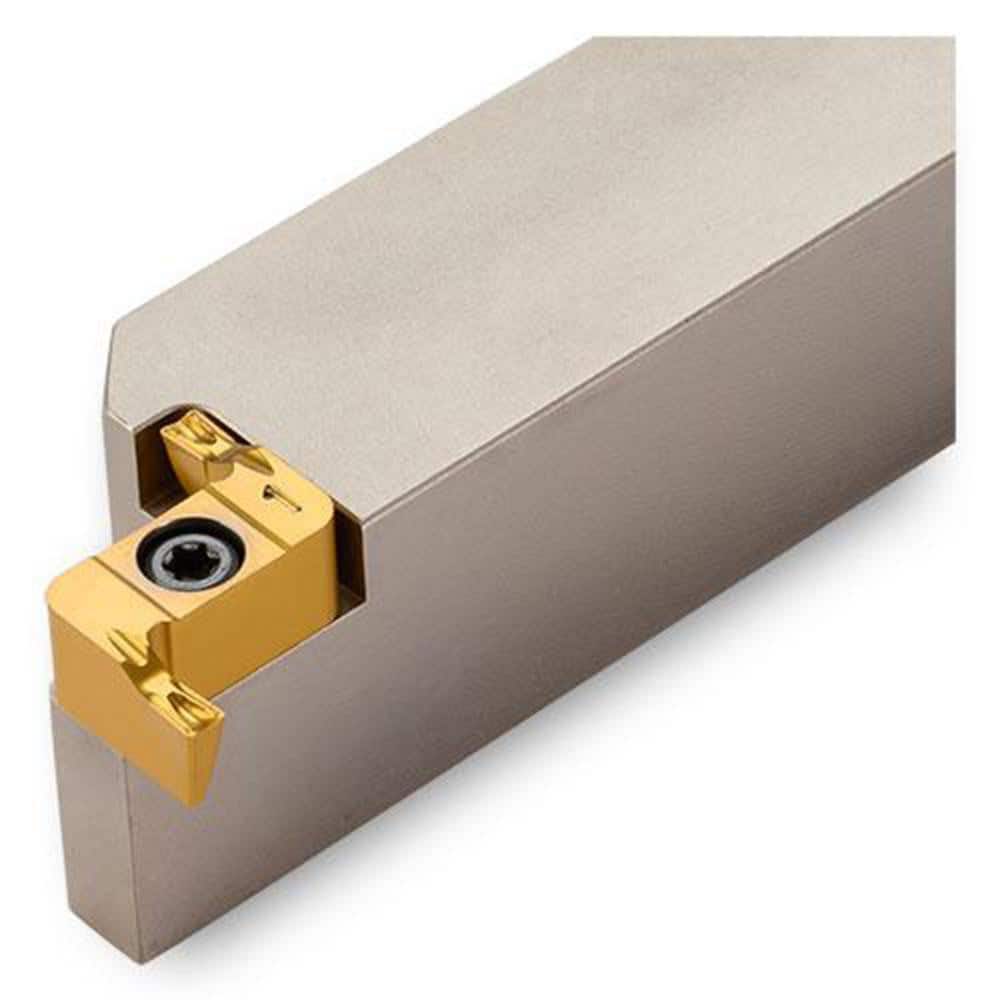

Indexable Grooving Toolholder: TXFPL25.4, 0.2360″ Max Depth, Uses TDFX 1 to 8 Inserts, 1.0000″ Shank Height, 1″ Shank Width, No
Item #: 13577465
Brand: Ingersoll Cutting Tools
Model #: 6210639
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 3; 4 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | TXFPL |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | TDFX 1 to 8 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | TXFPR/L |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Maximum Workpiece Diameter (Decimal Inch) | 0.4720 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
