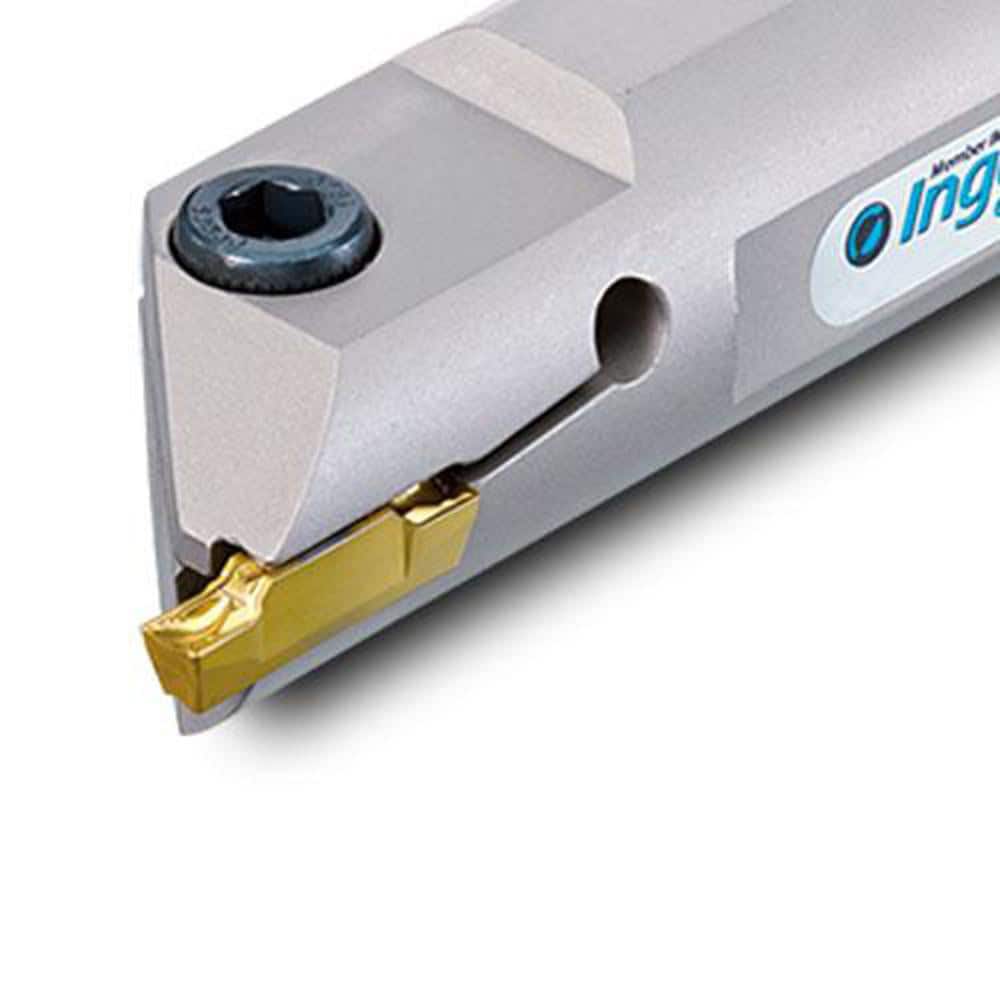

Indexable Grooving Toolholder: TGIFL25.4-6C-T5.5, 0.1970″ Max Groove Width 0.2160″ Max Depth, Uses TDX 5, TDX 6, SC*T 5, SC*T 6, TSL 5 & TSL 6 Inserts, No
Item #: 13575733
Brand: Ingersoll Cutting Tools
Model #: 6114667
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | 5; 6 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2160 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
| Toolholder Style | TGIFL |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TDX 6; TDX 5; TSL 5; TSL 6; SC*T 6; SC*T 5 |
| Series | TGIFR/L |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4130 |
| Minimum Hole Diameter (Decimal Inch) | 1.0360 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
