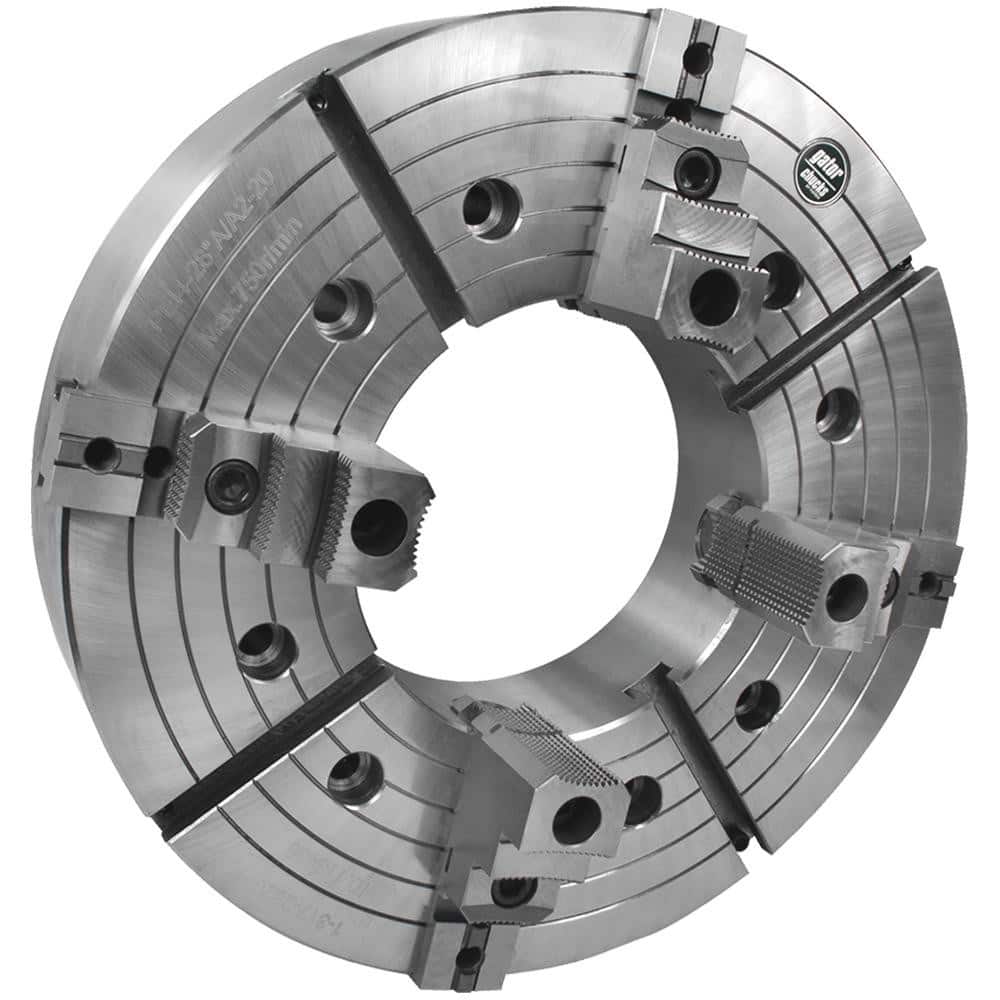

Independent Manual Lathe Chuck: 4-Jaw, 40″ Dia Two-Piece Jaws, Direct Mount, 430 Max RPM
Item #: 13536537
Brand: Gator Lathe Chucks
Model #: 1-317-4028
Product Specifications
| Chuck Type | Independent |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 20.8600 |
| Chuck Diameter (Decimal Inch) | 40.0000 |
| Chuck Diameter (Inch) | 40 |
| Minimum Jaw Capacity (Inch) | 13.7300 |
| Minimum Jaw Capacity (mm) | 13.73 |
| Maximum Jaw Capacity (mm) | 39.40 |
| Maximum Jaw Capacity (Inch) | 39.4000 |
| Jaw Height (Decimal Inch) | 3.5710 |
| Maximum Rpm | 430 |
| Mount Type | Direct |
| TIR Repeatability (Decimal Inch) | 0.0071 |
| Number Of Jaws | 4 |
| Contents | Chuck Mounting Bolts; (1) Set of HD Master & Hard Top Reversible Jaws; Eye Bolts; Chuck Wrench; Hex Keys |
