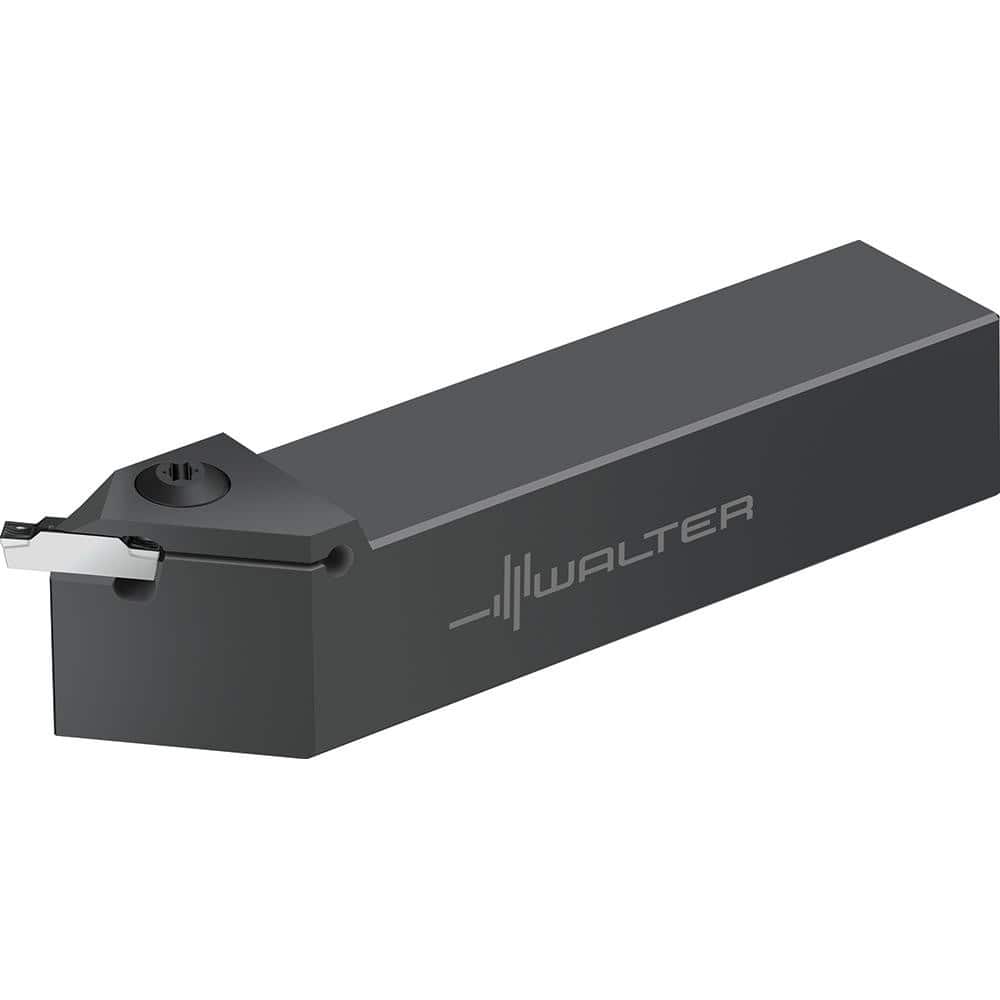

Indexable Grooving/Cut-Off Toolholders; Cutting Direction: Left Hand; Maximum Depth of Cut (Decimal Inch): 0.1970; Maximum Groove Width (Decimal Inch): 0.1670; Minimum Groove Width (Decimal Inch): 0.0790; Toolholder Style: G4551; Tool Material: Steel; Ins
Item #: 13504618
Brand: Walter
Model #: 8120927
Product Specifications
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Maximum Groove Width (Decimal Inch) | 0.1670 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Toolholder Style | G4551 |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DX18-2; DX18-3; DX18-4 |
| Shank Height (Decimal Inch) | 0.9840 |
| Shank Length (Decimal Inch) | 3.7600 |
| Shank Width/Diameter (Decimal Inch) | 0.9840 |
| Series | G4551-20-32-L-DX |
| Overall Length (mm) | 5.10 |
| Overall Length (Decimal Inch) | 5.1000 |
| Cutting Tool Application | Grooving; Cut-Off |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0750 |
| Head Length (Decimal Inch) | 1.2600 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Coolant Through | No |
