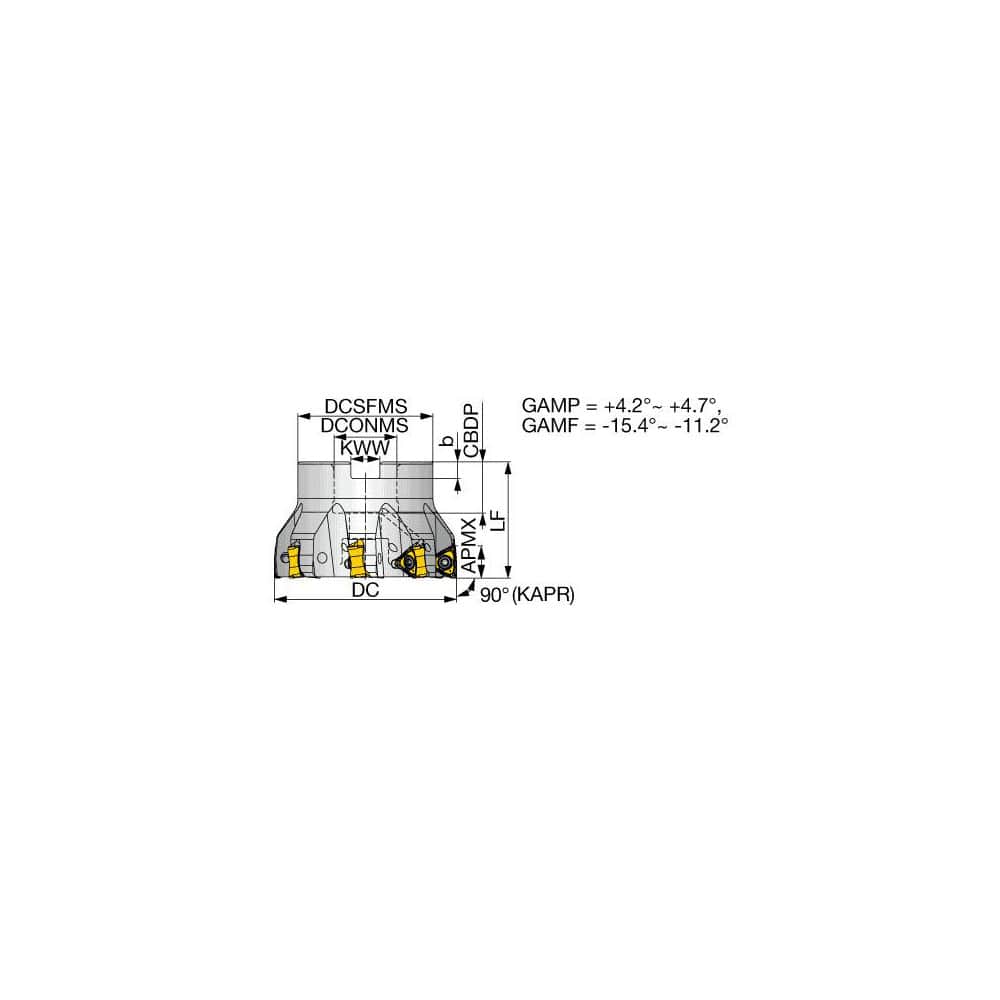

Indexable Square-Shoulder Face Mill: TPTN12U6.00B2.00R12N, 6'' Cut Dia, 2.0000″ Arbor Hole Dia, 0.4330″ Max Cutting Depth Uses 12, 120708 Inserts, Through Coolant, Series TPTN
Item #: 13468178
Brand: Tungaloy
Model #: 6787293
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 6.0000 |
| Minimum Cutting Diameter (Inch) | 6 |
| Maximum Cutting Diameter (Inch) | 6 |
| Maximum Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Arbor Hole Diameter (mm) | 2.00 |
| Arbor Hole Diameter (Inch) | 2 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Compatible Insert Size Code | 120708 |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | TPTN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Axial); Negative (Radial) |
| Rake Angle | 4.2 |
| Series | TPTN |
| Overall Height (Decimal Inch) | 2.4800 |
| Keyway Width (Decimal Inch) | 0.7480 |
| Hub Diameter (Decimal Inch) | 3.5850 |
| Pitch Type | Medium |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
