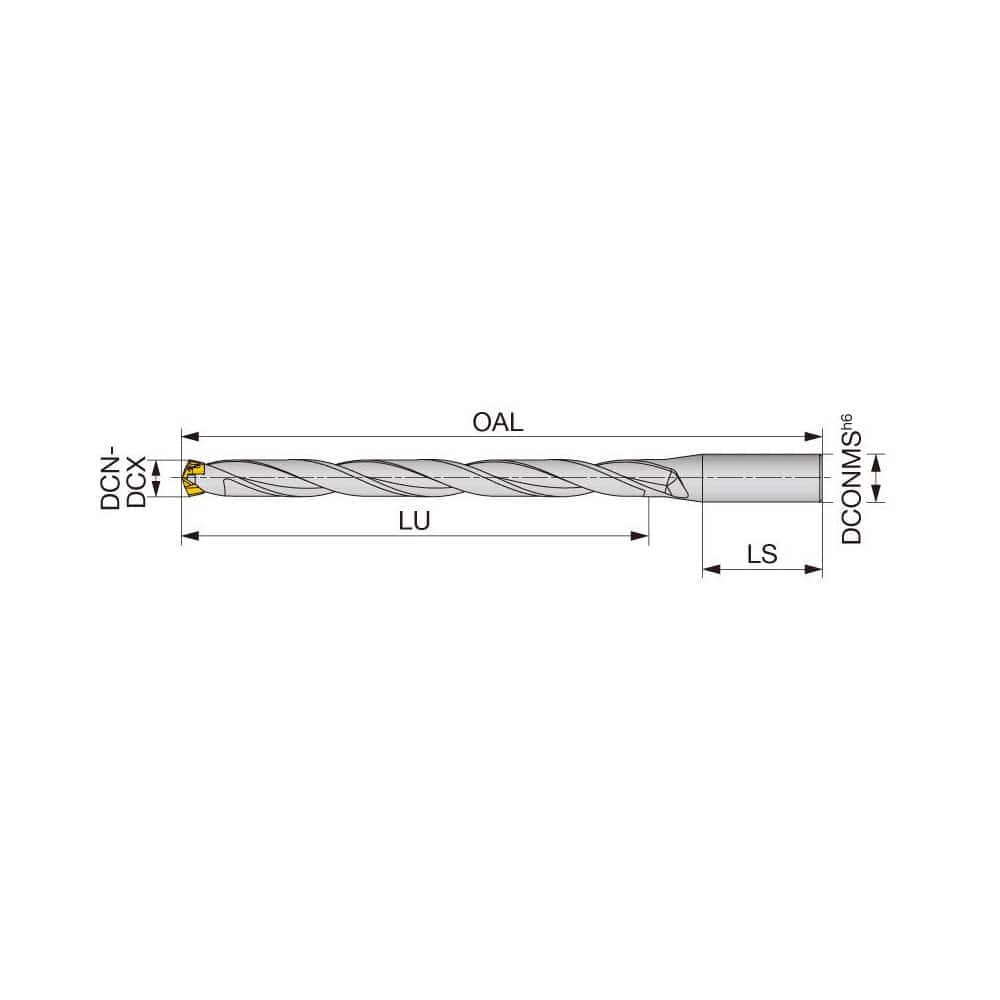

Replaceable Tip Drill: 8.5 to 8.9 mm Drill Dia, 104 mm Max Depth, 12 mm Straight-Cylindrical Shank Uses DMP Inserts, 162.25 mm OAL, Through Coolant
Item #: 13458054
Brand: Tungaloy
Model #: 6785548
Product Specifications
| Minimum Drill Diameter (mm) | 8.50 |
| Maximum Drill Diameter (mm) | 8.90 |
| Maximum Drill Depth (mm) | 104.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 12.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 100.00 to 125.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 085 |
| Overall Length (mm) | 162.25 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (mm) | 45.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
