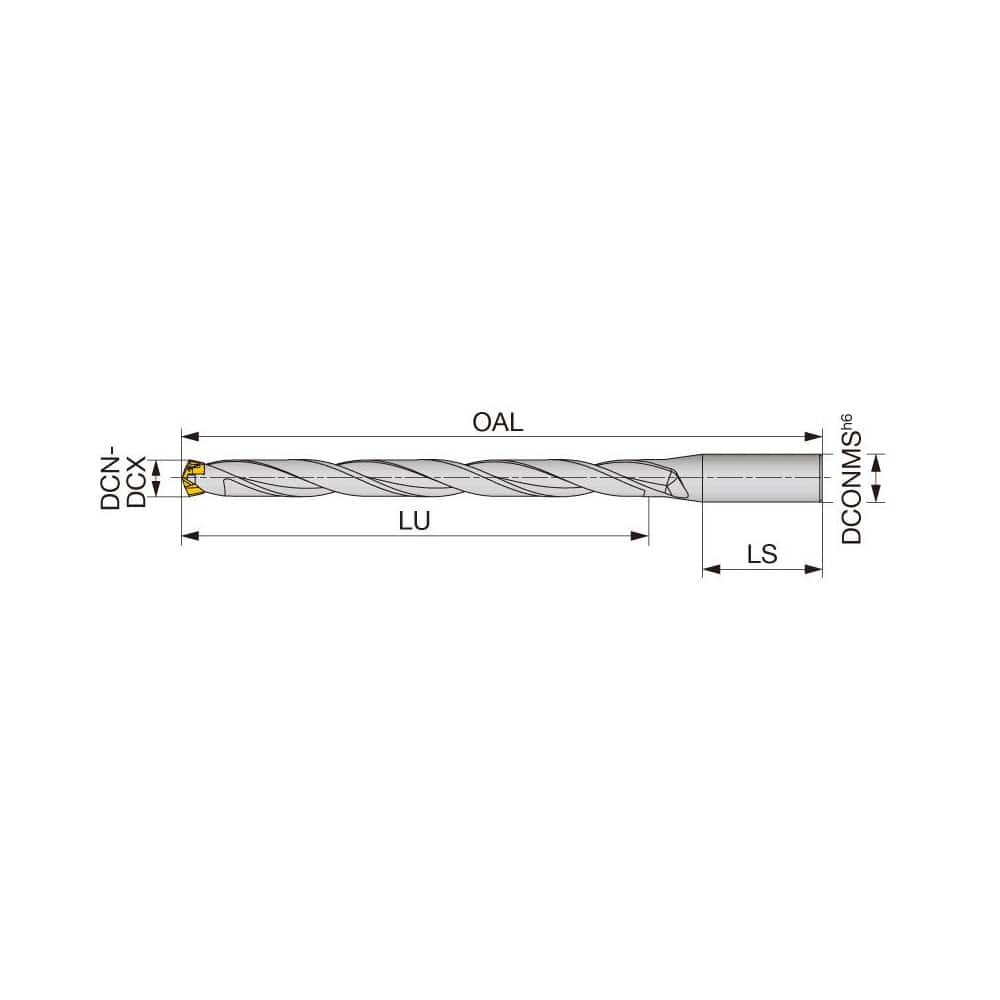

Replaceable Tip Drill: 11 to 11.4 mm Drill Dia, 134 mm Max Depth, 16 mm Straight-Cylindrical Shank Uses DMP Inserts, 196.45 mm OAL, Through Coolant
Item #: 13457882
Brand: Tungaloy
Model #: 6785553
Product Specifications
| Minimum Drill Diameter (mm) | 11.00 |
| Maximum Drill Diameter (mm) | 11.40 |
| Maximum Drill Depth (mm) | 134.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 125.00 to 160.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 110 |
| Overall Length (mm) | 196.45 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (mm) | 48.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
