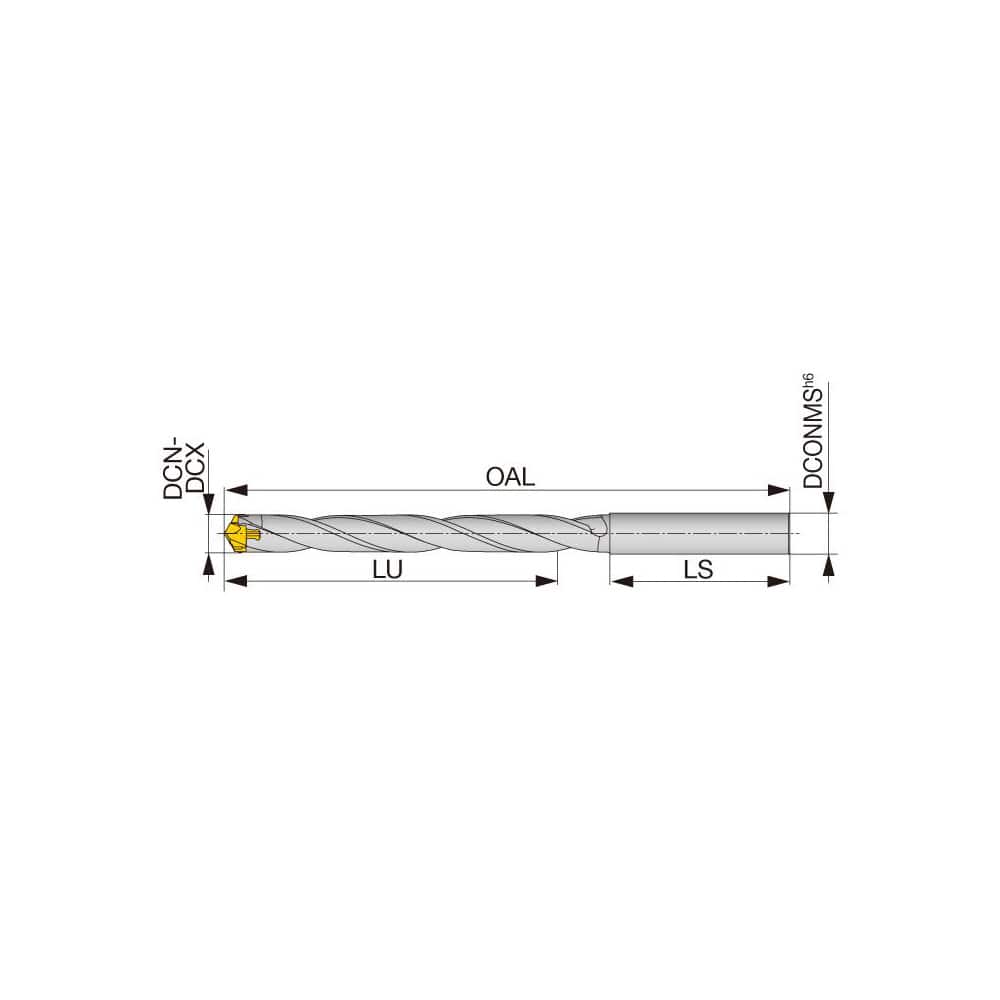

Replaceable Tip Drill: 6.5 to 6.9 mm Drill Dia, 52 mm Max Depth, 8 mm Straight-Cylindrical Shank Uses DMP Inserts, 108.53 mm OAL, Through Coolant
Item #: 13457718
Brand: Tungaloy
Model #: 6784619
Product Specifications
| Minimum Drill Diameter (mm) | 6.50 |
| Maximum Drill Diameter (mm) | 6.90 |
| Maximum Drill Depth (mm) | 52.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 8.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 065 |
| Overall Length (mm) | 108.53 |
| Series | TID |
| Toolholder Style | TISU |
| Shank Length (mm) | 45.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
