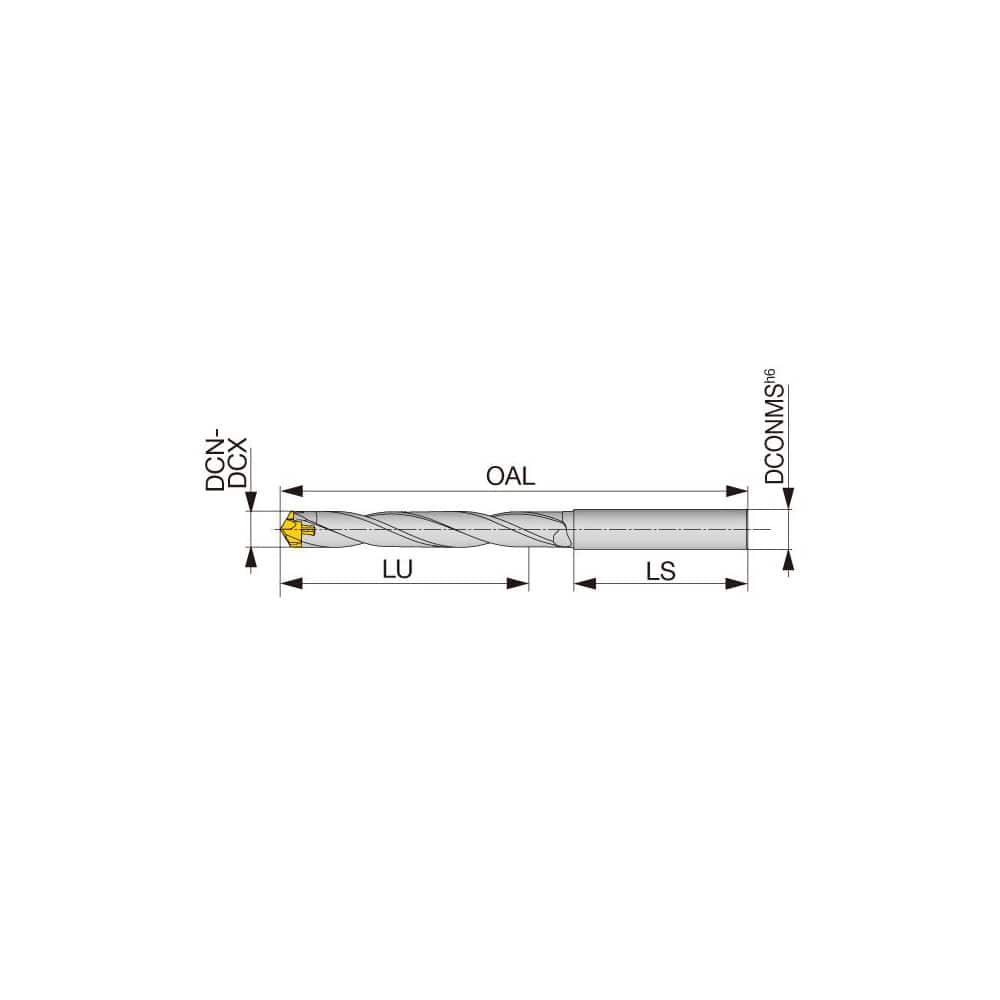

Replaceable Tip Drill: 14 to 14.4 mm Drill Dia, 94 mm Max Depth, 16 mm Straight-Cylindrical Shank Uses DMP Inserts, 178.18 mm OAL, Through Coolant
Item #: 13457338
Brand: Tungaloy
Model #: 6784613
Product Specifications
| Minimum Drill Diameter (mm) | 14.00 |
| Maximum Drill Diameter (mm) | 14.40 |
| Maximum Drill Depth (mm) | 94.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 140 |
| Overall Length (mm) | 178.18 |
| Series | TID |
| Toolholder Style | TISU |
| Shank Length (mm) | 70.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
