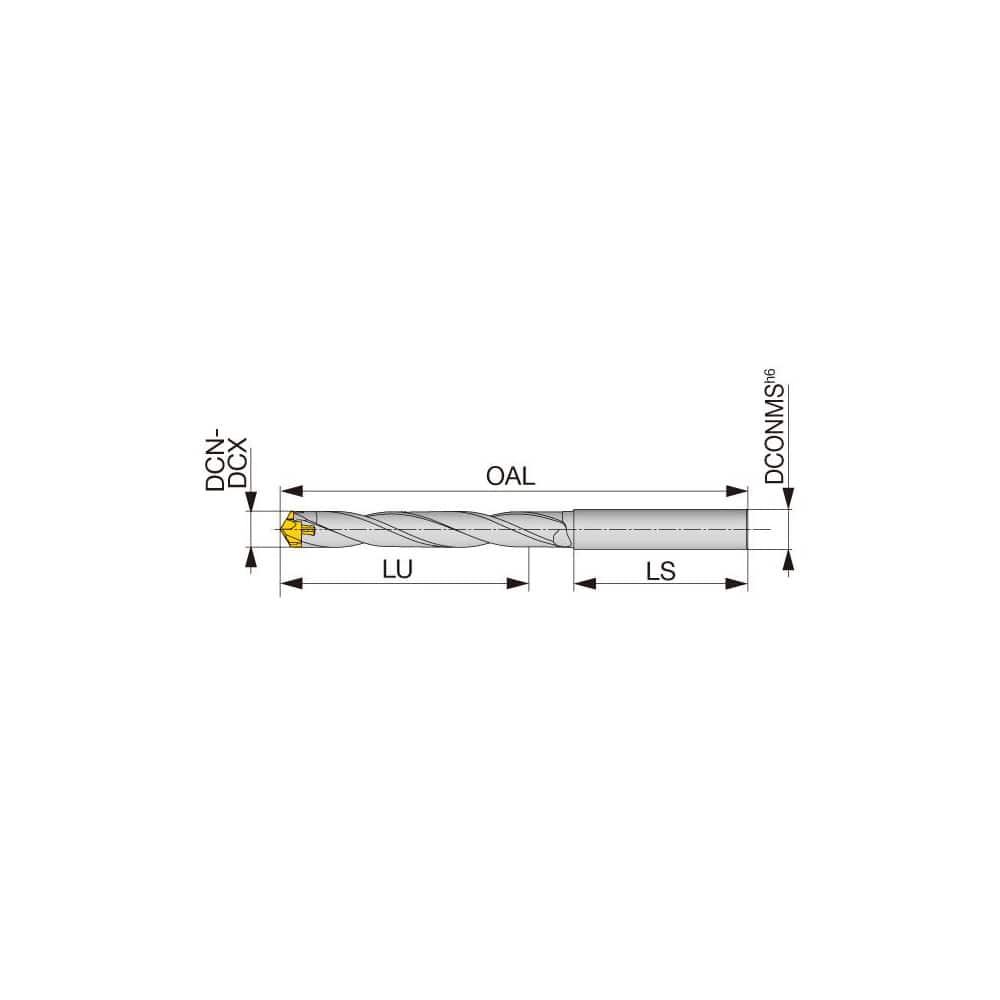

Replaceable Tip Drill: 12.5 to 12.9 mm Drill Dia, 84 mm Max Depth, 14 mm Straight-Cylindrical Shank Uses DMP Inserts, 161.09 mm OAL, Through Coolant
Item #: 13457320
Brand: Tungaloy
Model #: 6784610
Product Specifications
| Minimum Drill Diameter (mm) | 12.50 |
| Maximum Drill Diameter (mm) | 12.90 |
| Maximum Drill Depth (mm) | 84.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 14.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 125 |
| Overall Length (mm) | 161.09 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (mm) | 65.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
