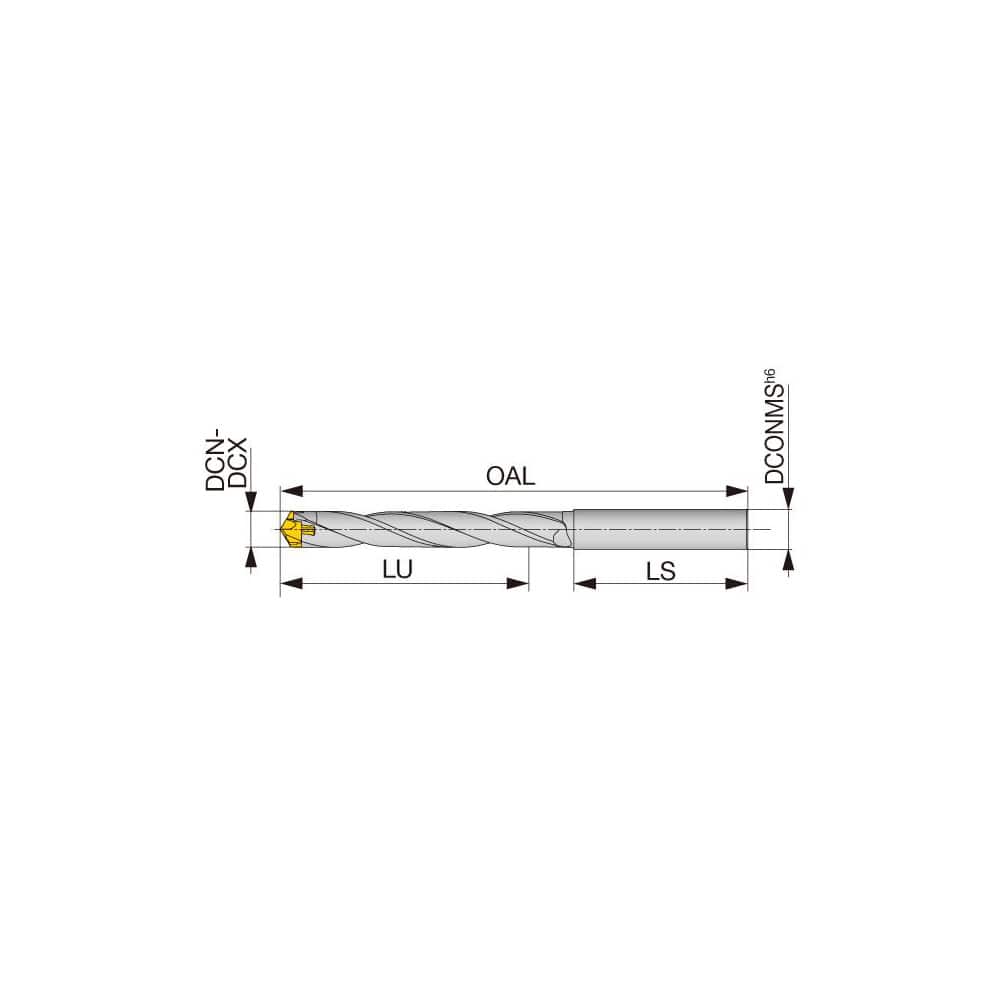

Replaceable Tip Drill: 11.5 to 11.9 mm Drill Dia, 78 mm Max Depth, 12 mm Straight-Cylindrical Shank Uses DMP Inserts, 154.54 mm OAL, Through Coolant
Item #: 13457288
Brand: Tungaloy
Model #: 6784608
Product Specifications
| Minimum Drill Diameter (mm) | 11.50 |
| Maximum Drill Diameter (mm) | 11.90 |
| Maximum Drill Depth (mm) | 78.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 12.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 115 |
| Overall Length (mm) | 154.54 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (mm) | 65.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
