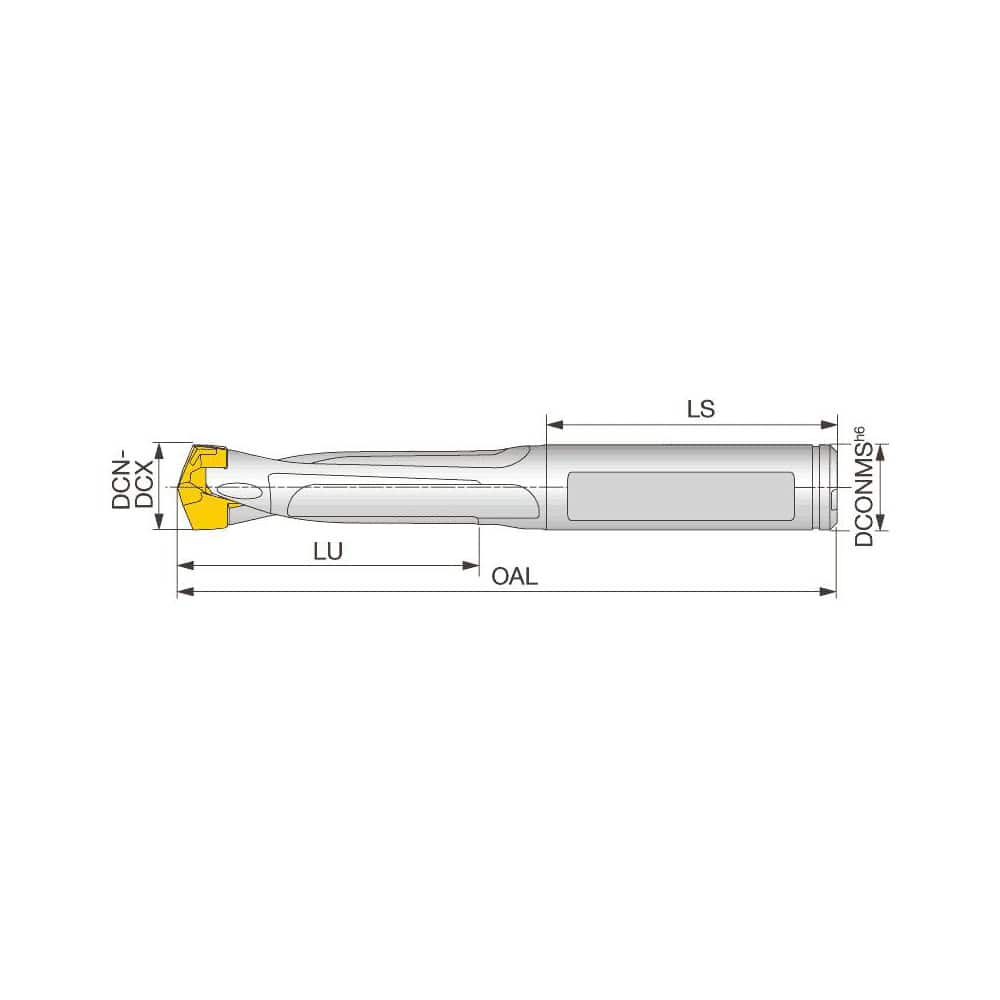

Replaceable Tip Drill: 8.5 to 8.9 mm Drill Dia, 43 mm Max Depth, 9 mm Weldon Flat Shank Uses DMP Inserts, 89.8 mm OAL, Through Coolant
Item #: 13456983
Brand: Tungaloy
Model #: 6788646
Product Specifications
| Minimum Drill Diameter (mm) | 8.50 |
| Maximum Drill Diameter (mm) | 8.90 |
| Maximum Drill Depth (mm) | 43.00 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 9.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 085 |
| Overall Length (mm) | 89.80 |
| Series | TIDC |
| Toolholder Style | TIDU |
| Shank Length (mm) | 36.07 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
