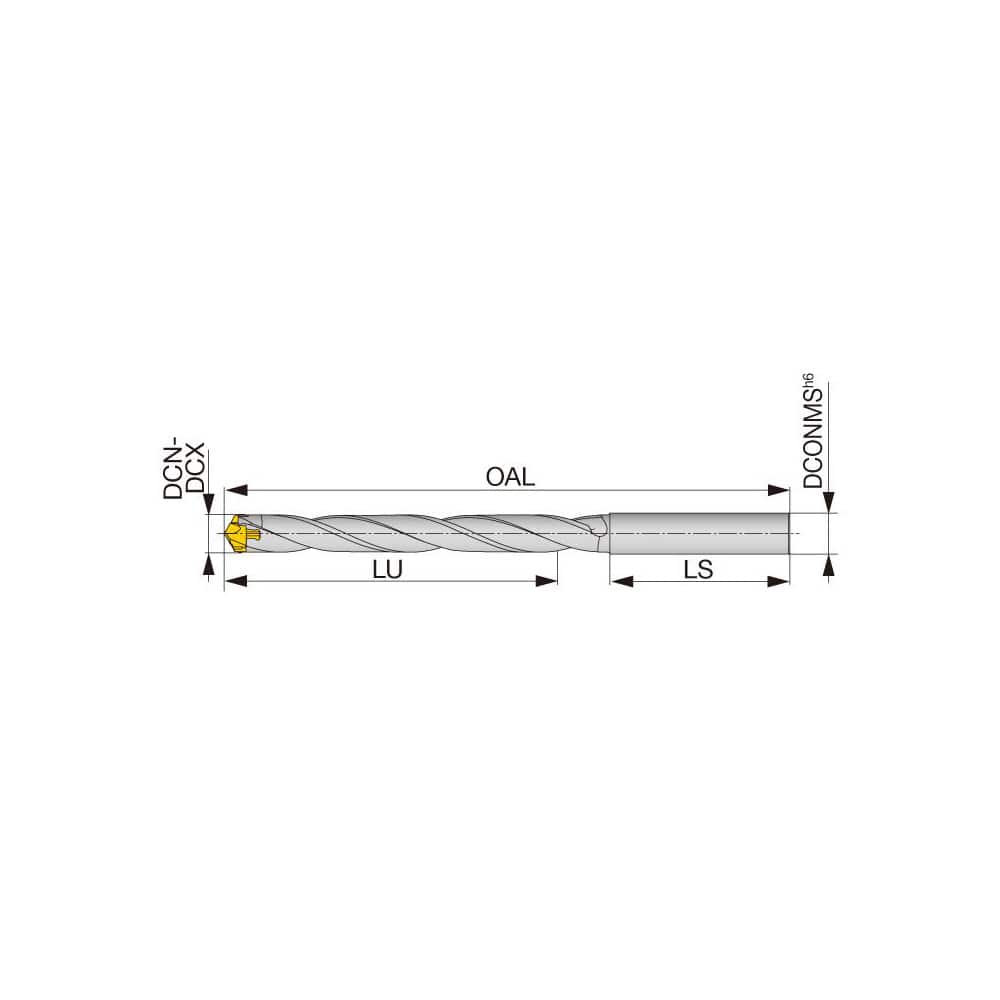

Replaceable Tip Drill: 6 to 6.4 mm Drill Dia, 48 mm Max Depth, 8 mm Straight-Cylindrical Shank Uses DMP Inserts, 104.44 mm OAL, Through Coolant
Item #: 13456876
Brand: Tungaloy
Model #: 6778767
Product Specifications
| Minimum Drill Diameter (mm) | 6.00 |
| Maximum Drill Diameter (mm) | 6.40 |
| Maximum Drill Depth (mm) | 48.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 8.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 060 |
| Overall Length (mm) | 104.44 |
| Series | TID |
| Toolholder Style | TISU |
| Shank Length (mm) | 45.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
