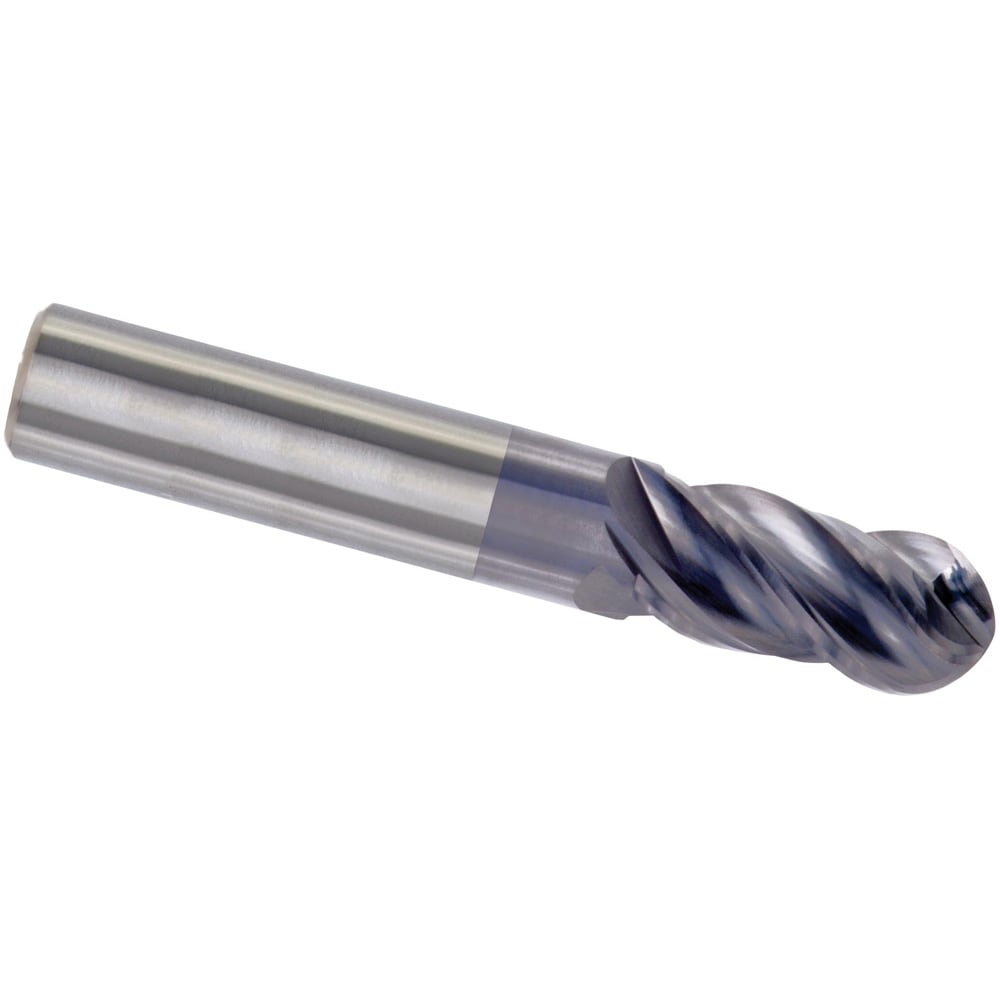

Ball End Mill: 1/2" Dia, 5/8" LOC, 4 Flute, High Speed Steel
Item #: 12023313
Brand: Cleveland
Model #: C80114
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (mm) | 12.70 |
| Number Of Flutes | 4 |
| End Mill Material | High Speed Steel |
| Length of Cut (Inch) | 5/8 |
| Length of Cut (mm) | 15.88 |
| Coating/Finish | AP/MAX |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1/2 |
| Extended Reach | No |
| Variable Helix | Yes |
| Variable Index | Yes |
| Helix Angle | 38 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (mm) | 63.50 |
| Chipbreaker | No |
| Undercutting | Yes |
| Length Type | Regular |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (mm) | 12.70 |
| Primary Workpiece Material | High-Temperature Alloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | CEM-V-4B-TA |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| System Of Measurement | Fractional Inch |
