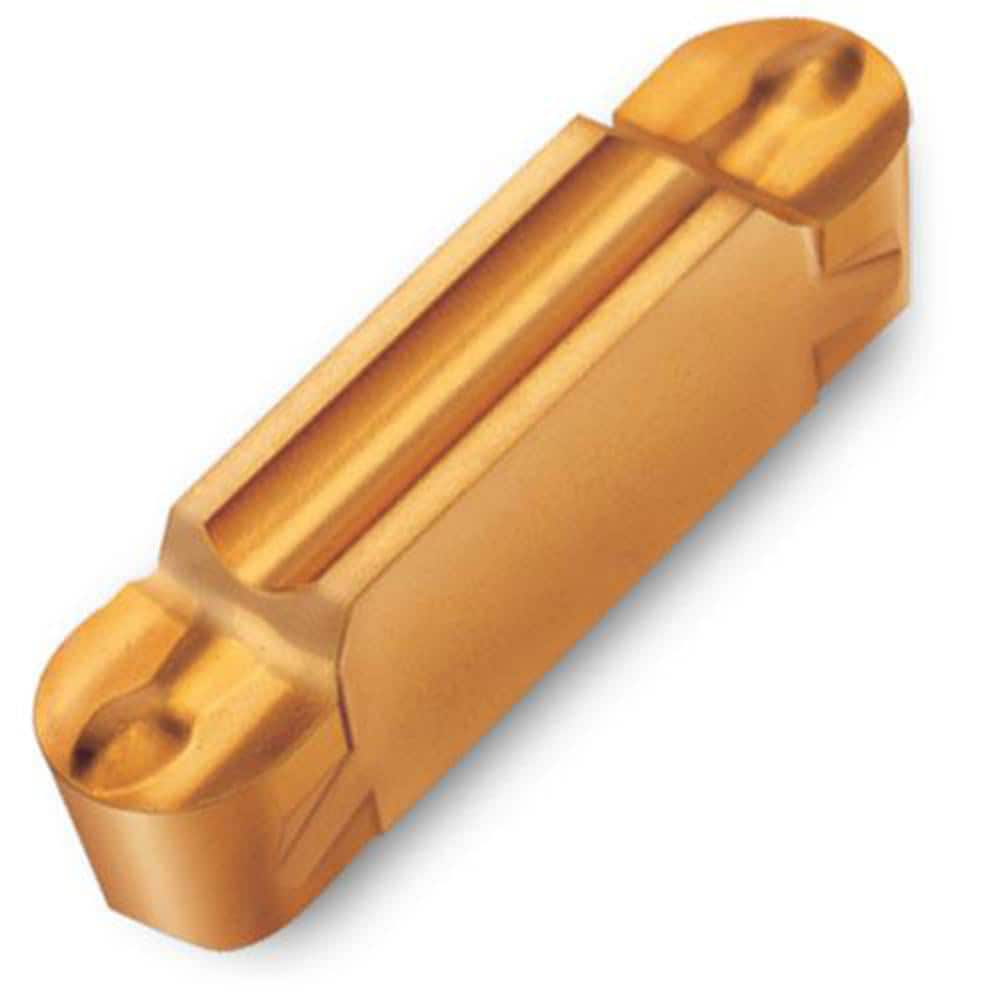

Grooving Insert: TDTT K10, Solid Carbide Uncoated, Neutral, 0.236″ Cutting Width, Series TDT-E (Full Radius)
Item #: 13393418
Brand: Ingersoll Cutting Tools
Model #: 6308857
Product Specifications
| Insert Style | TDT |
| Insert Size Code | 6 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | K10 |
| Cutting Width (Decimal Inch) | 0.2360 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.1180 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Profiling |
| Series | TDT-E (Full Radius) |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.9800 |
| Overall Length (mm) | 0.98 |
| Primary Workpiece Material | Cast Iron |
| Chip Breaker | T |
| Coating/Finish | Uncoated |
