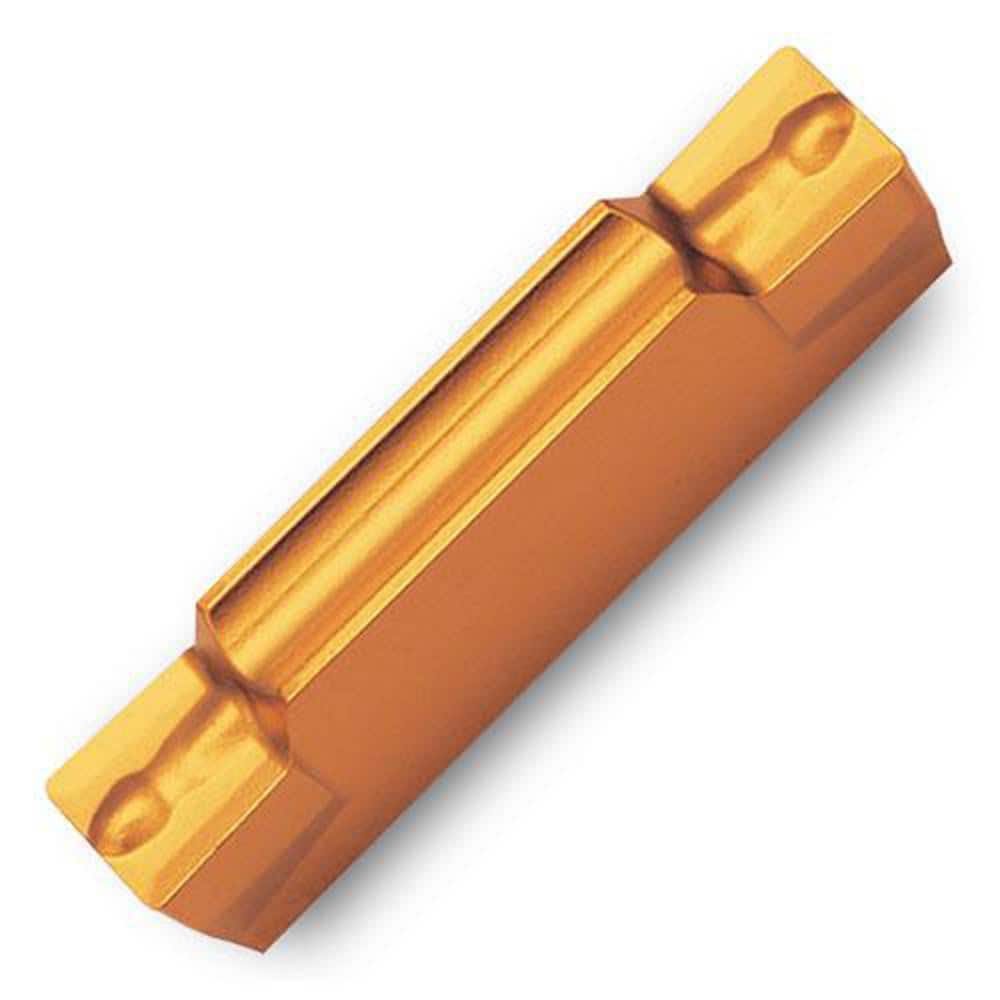

Grooving Insert: TDXTT TT9080, Solid Carbide TiAlN & TiN Finish, Neutral, 0.118″ Cutting Width, Series TDXT-E
Item #: 13390323
Brand: Ingersoll Cutting Tools
Model #: 6402376
Product Specifications
| Insert Style | TDXT |
| Insert Size Code | 3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9080 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | TDXT-E |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.7900 |
| Overall Length (mm) | 0.79 |
| Primary Workpiece Material | Cast Iron |
| Chip Breaker | T |
| Coating/Finish | TiN; TiAlN |
