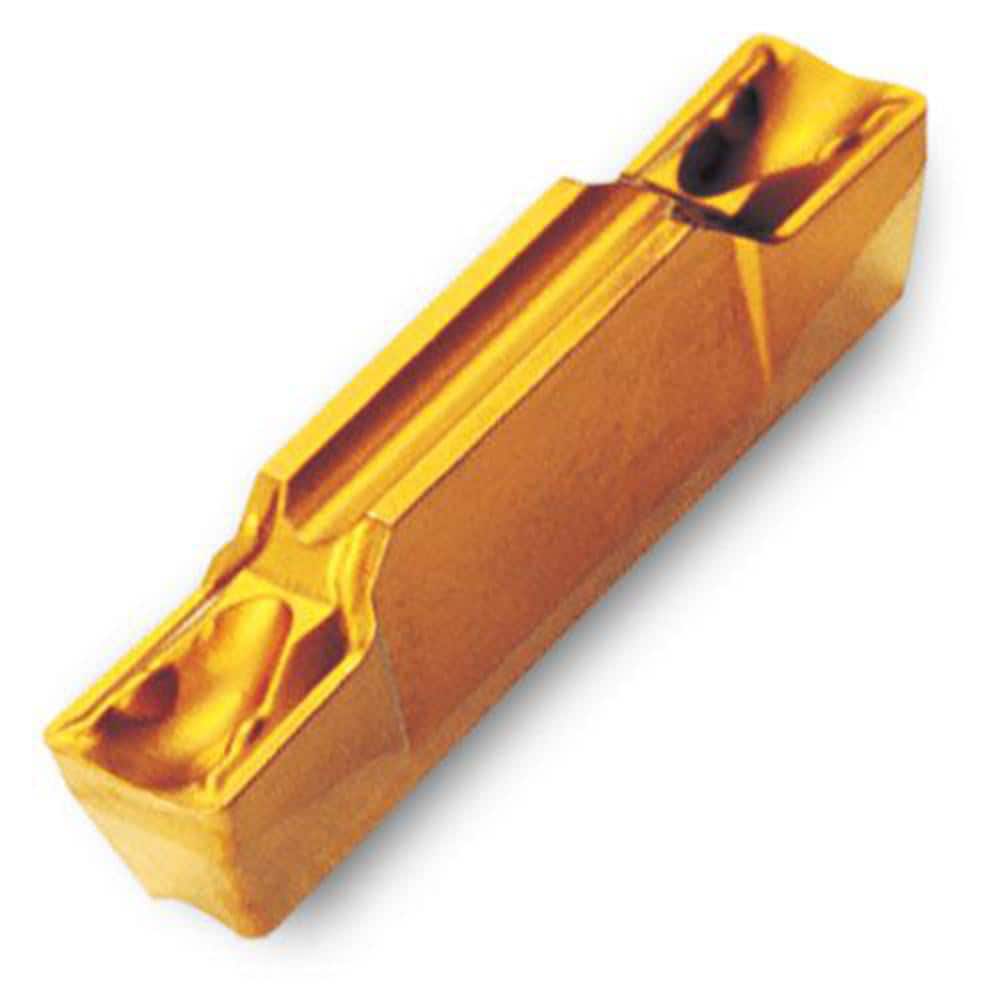

Grooving Insert: TDXUXU-Universal TT6300, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.079″ Cutting Width, Series TDXU-E
Item #: 13389101
Brand: Ingersoll Cutting Tools
Model #: 6402571
Product Specifications
| Insert Style | TDXU |
| Insert Size Code | 2 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT6300 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | TDXU-E |
| Coating Process | MT-CVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.7900 |
| Overall Length (mm) | 0.79 |
| Primary Workpiece Material | Cast Iron |
| Chip Breaker | XU-Universal |
| Coating/Finish | TiCN; TiN; Al2O3 |
