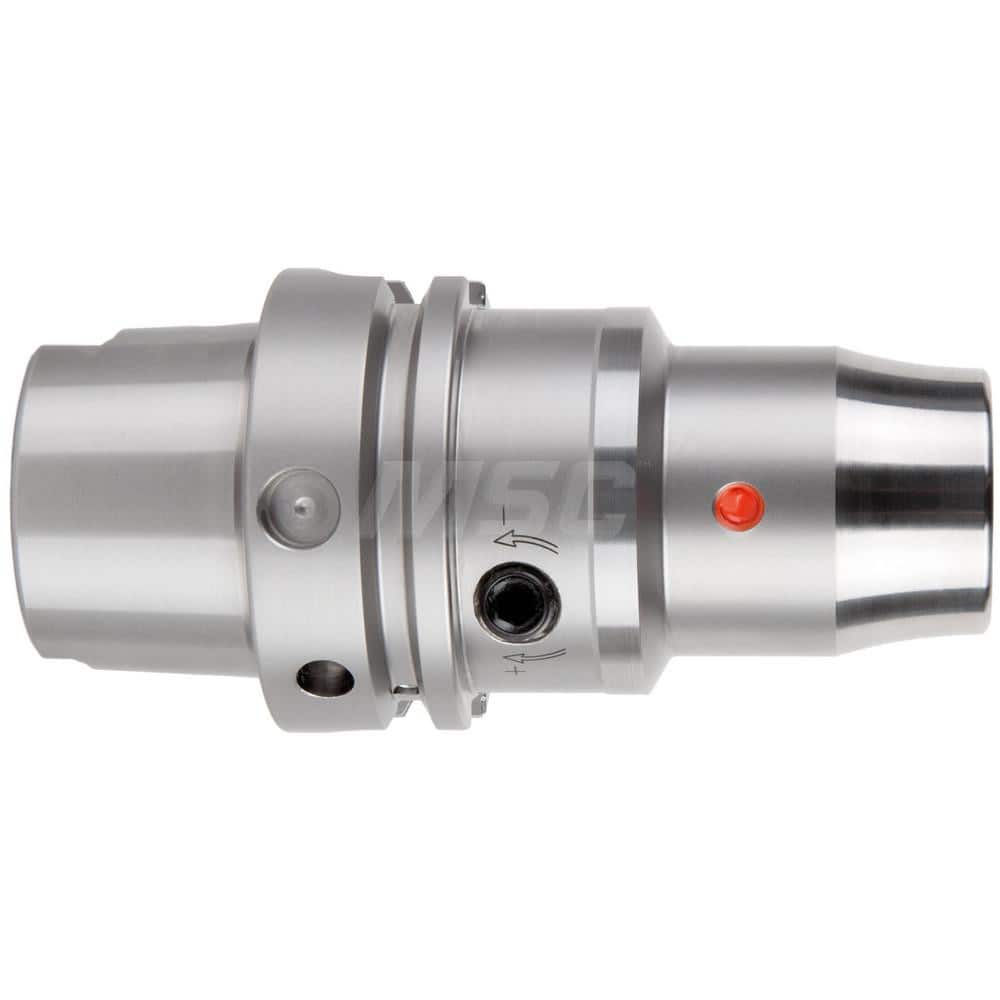

Hydraulic Tool Chuck: HSK63A, HSK63A, Taper Shank, 14 mm Hole 90 mm Projection, 34 mm Nose Dia, 46 mm Clamp Depth, 25,000 RPM, Through Coolant
Item #: 13357470
Brand: Mapal
Model #: 30297605
Product Specifications
| Shank Type | Taper |
| Connection Size | HSK63A |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.5511 |
| Chuck Hole Diameter | 14 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.3385 |
| Nose Diameter (Mm) ( - 2 Decimals) | 34.00 |
| Projection (mm) | 90.00 |
| Projection (Decimal Inch - 4 Decimals) | 3.5433 |
| Clamping Depth (mm) | 46.00 |
| Balanced To Rpm | 25000 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 4.8031 |
| Overall Length (mm) | 122.00 |
| Material | Steel |
| Cutting Direction | Right or Left Hand |
| Number Of Pieces | 1 |
| C-Projection Gage Line to Nose End (Decimal Inch) | 3.5400 |
| Includes | Length Adjustment Screw |
| Hole Diameter (Mm) ( - 0 Decimals) | 14.00 |
