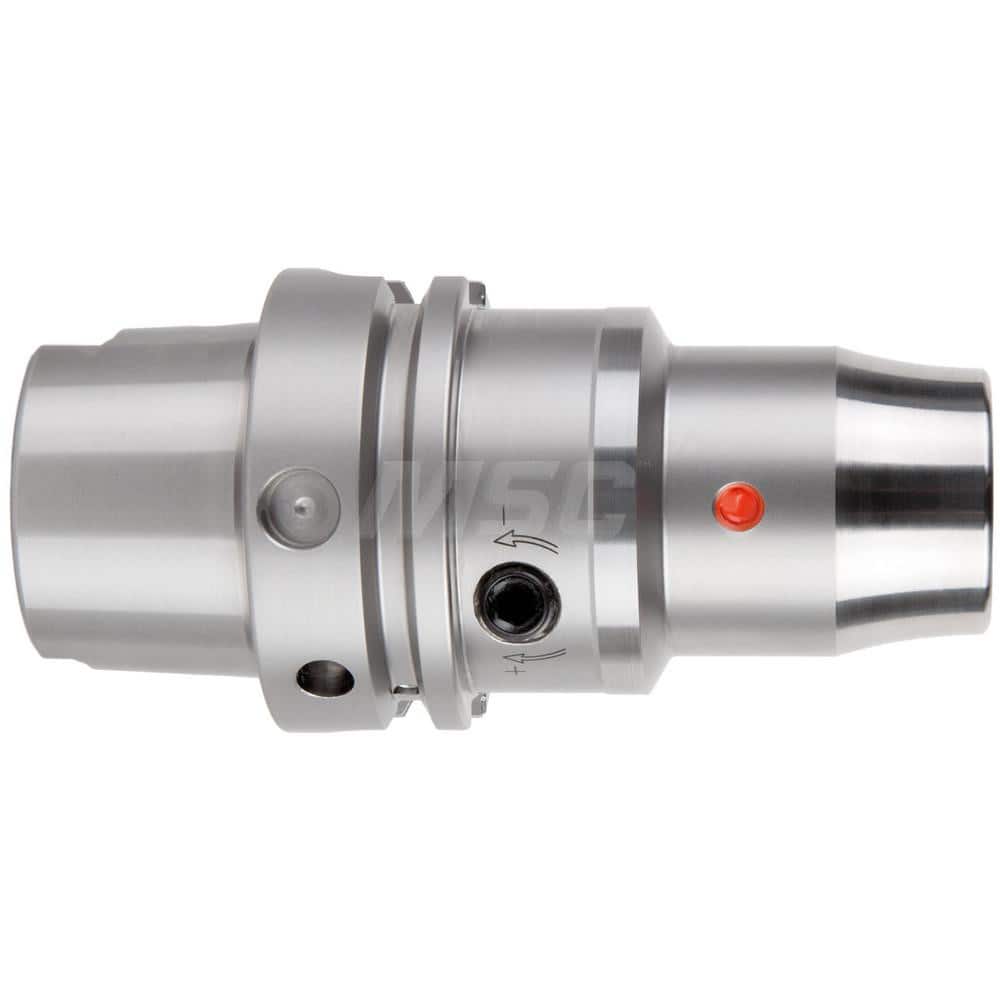

Hydraulic Tool Chuck: HSK63A, HSK63A, Taper Shank, 20 mm Hole 100 mm Projection, 42 mm Nose Dia, 51 mm Clamp Depth, 25,000 RPM, Through Coolant
Item #: 13357413
Brand: Mapal
Model #: 30297608
Product Specifications
| Shank Type | Taper |
| Connection Size | HSK63A |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Chuck Hole Diameter | 20 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.6535 |
| Nose Diameter (Mm) ( - 2 Decimals) | 42.00 |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch - 4 Decimals) | 3.9370 |
| Clamping Depth (mm) | 51.00 |
| Balanced To Rpm | 25000 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 5.1968 |
| Overall Length (mm) | 132.00 |
| Material | Steel |
| Cutting Direction | Right or Left Hand |
| Number Of Pieces | 1 |
| C-Projection Gage Line to Nose End (Decimal Inch) | 3.9300 |
| Includes | Length Adjustment Screw |
| Hole Diameter (Mm) ( - 0 Decimals) | 20.00 |
