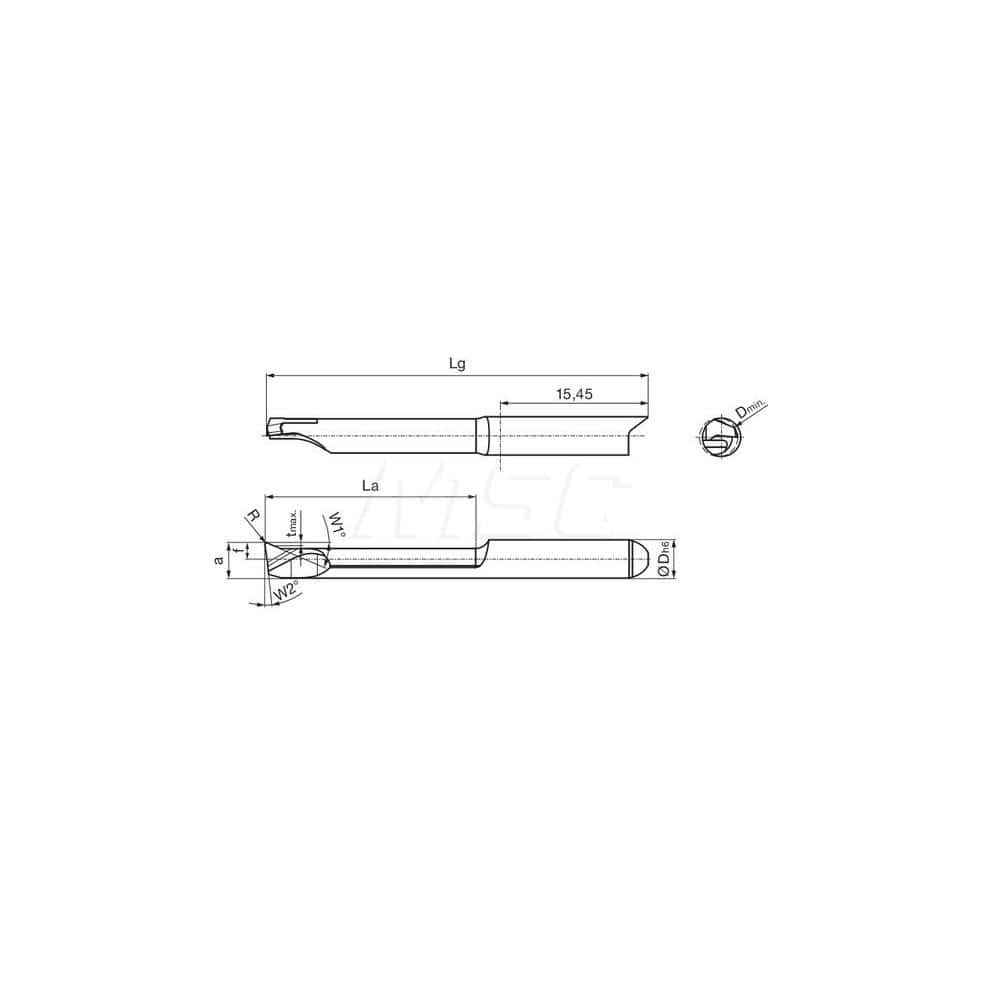

Internal Boring Bar: 0.1575″ Min Bore, 0.8661″ Max Depth, Left Hand Cut, Carbide 1.5748″ OAL, 0.0079″ Corner Radius
Item #: 13264064
Brand: Guhring
Model #: 9250530040540
Product Specifications
| Boring Bar Type | Internal Boring |
| Cutting Direction | Left Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1575 |
| Minimum Bore Diameter (mm) | 4.00 |
| Material | Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.8661 |
| Maximum Bore Depth (mm) | 22.00 |
| Shank Diameter (mm) | 4.00 |
| Overall Length (mm) | 40.00 |
| Finish Coating | Nano-A |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Series | GT 104 |
| Manufacturers Catalog Number | GT104.2337.020.22.40.L |
| Maximum Depth of Cut (mm) | 0.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0118 |
| Overall Length (Decimal Inch) | 1.5748 |
| Primary Workpiece Material | P; S; H; K; M |
| Relief Angle | 23 |
