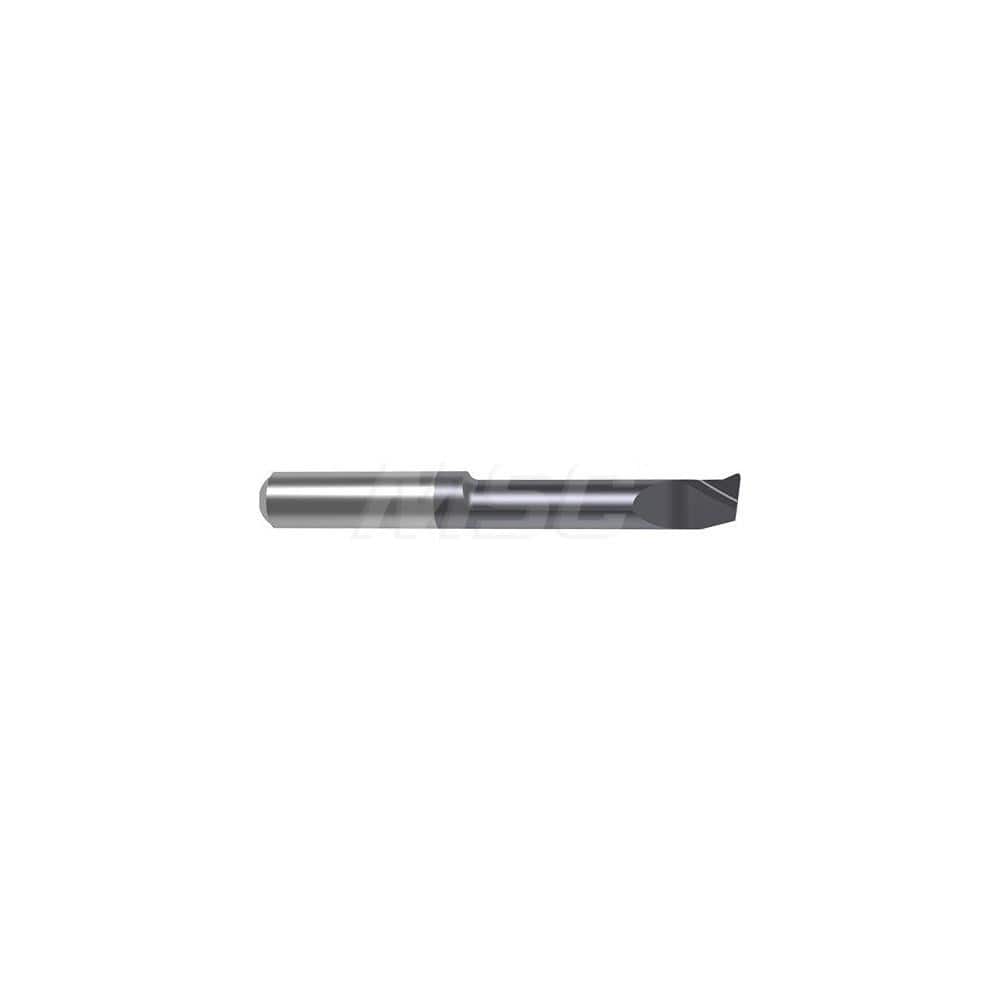

Internal Boring Bar: 0.315″ Min Bore, 1.063″ Max Depth, Right Hand Cut, Carbide 2.0472″ OAL, 0.0079″ Corner Radius
Item #: 13262514
Brand: Guhring
Model #: 9272000083400
Product Specifications
Boring Bar Type | Internal Boring |
Cutting Direction | Right Hand |
Minimum Bore Diameter (Decimal Inch) | 0.3150 |
Minimum Bore Diameter (mm) | 8.00 |
Material | Carbide |
Maximum Bore Depth (Decimal Inch) | 1.0630 |
Maximum Bore Depth (mm) | 27.00 |
Shank Diameter (mm) | 8.00 |
Overall Length (mm) | 52.00 |
Finish Coating | Nano-A |
Corner Radius (Decimal Inch) | 0.0079 |
Corner Radius (mm) | 0.20 |
Series | GT 108 |
Manufacturers Catalog Number | GT108.2377.020.27.80.R.U1 |
Maximum Depth of Cut (mm) | 0.60 |
Maximum Depth of Cut (Decimal Inch) | 0.0236 |
Overall Length (Decimal Inch) | 2.0472 |
Primary Workpiece Material | P; S; H; K; M |
Relief Angle | 23 |
Secondary Workpiece Material | N |
