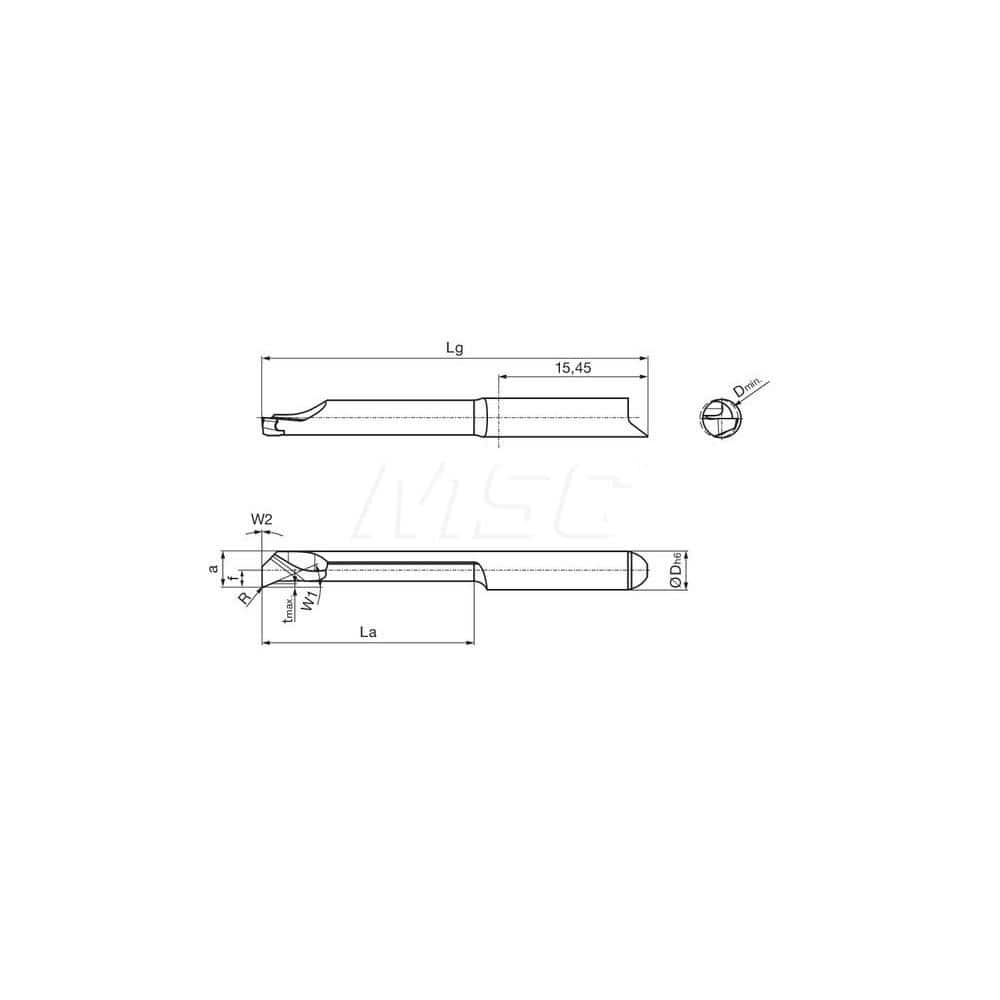

Internal Boring Bar: 0.1575″ Min Bore, 0.6693″ Max Depth, Right Hand Cut, Carbide 1.3779″ OAL, 0.0039″ Corner Radius
Item #: 13257480
Brand: Guhring
Model #: 9250600040500
Product Specifications
| Boring Bar Type | Internal Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1575 |
| Minimum Bore Diameter (mm) | 4.00 |
| Material | Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.6693 |
| Maximum Bore Depth (mm) | 17.00 |
| Shank Diameter (mm) | 4.00 |
| Overall Length (mm) | 35.00 |
| Finish Coating | Nano-A |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Series | GT 104 |
| Manufacturers Catalog Number | GT104.9037.010.17.40.R |
| Maximum Depth of Cut (mm) | 0.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0118 |
| Overall Length (Decimal Inch) | 1.3779 |
| Primary Workpiece Material | P; S; H; K; M |
| Relief Angle | 23 |
| Secondary Workpiece Material | N |
