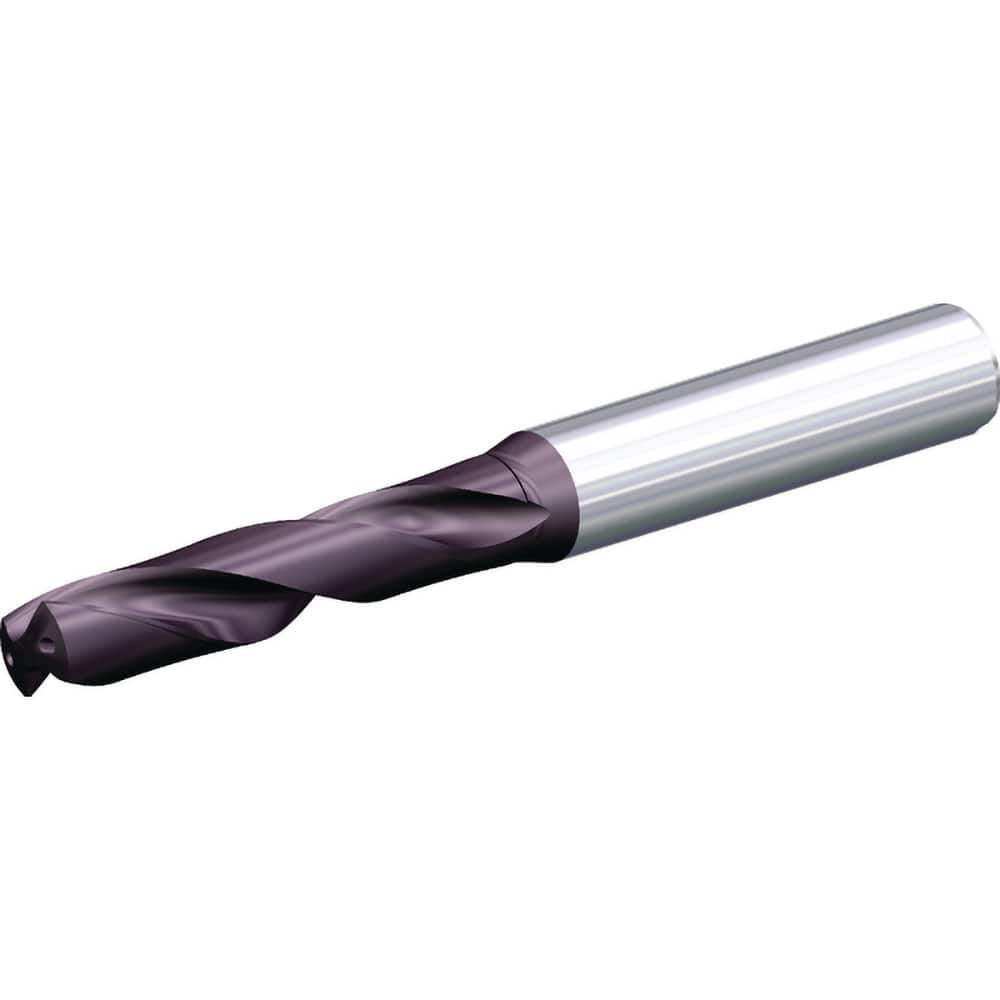

Taper Length Drill Bit: 0.1875″ Dia, 140 ° Coated, 2.2047″ Flute Length, 2.2047″ OAL, RH Cut, Helical Flute, Straight Shank, Series B212
Item #: 13211453
Brand: Kennametal
Model #: 6393625
Product Specifications
| Drill Bit Size (mm) | 4.76 |
| Tool Material | Solid Carbide |
| Coating/Finish | Coated |
| Flute Length (mm) | 56.00 |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 140 |
| Overall Length (Inch) | 2.2047 |
| Overall Length (mm) | 56.00 |
| Shank Diameter (mm) | 6.00 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Flute Length (Decimal Inch) | 2.2047 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | B212 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 1.8898 |
| Maximum Drilling Depth (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (Decimal Inch) | 0.0276 |
