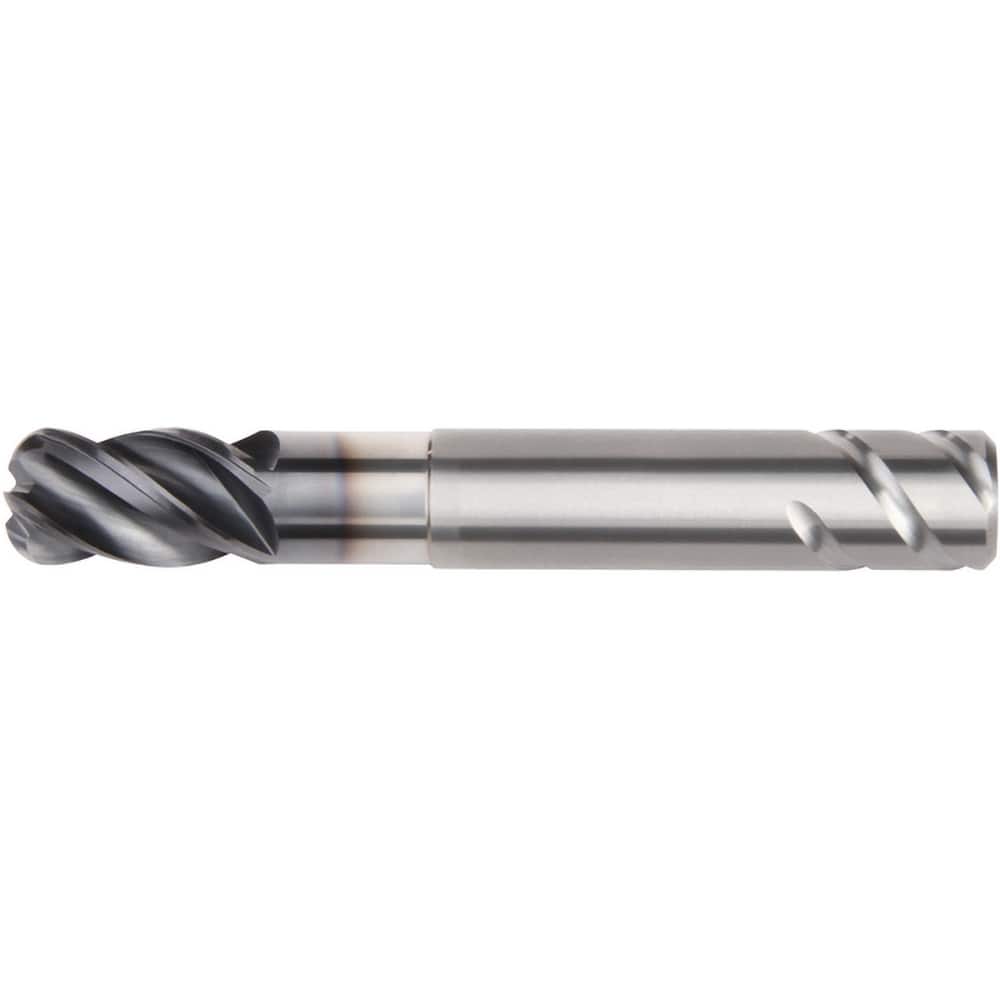

Corner Radius End Mill: 0.9843″ Dia, 1.4764″ LOC, 0.2362″ Radius, 4 Flutes, Solid Carbide 5.315″ OAL, 0.9843″ Shank Dia, 38 ° Helix, AlTiN Coated, Corner Radius End, Centercutting, Series HARVI I
Item #: 13203559
Brand: Kennametal
Model #: 6064693
Product Specifications
| Mill Diameter (Decimal Inch) | 0.9843 |
| Mill Diameter (mm) | 20.00 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Corner Radius (mm) | 6.00 |
| Length of Cut (mm) | 37.50 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 38 |
| Shank Type | Safe-Lock |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 0.9843 |
| Shank Diameter (mm) | 25.0000 |
| Reach Length (Decimal Inch) | 2.9528 |
| Reach Length (mm) | 75.0000 |
| Overall Length (mm) | 135.00 |
| Overall Length (Decimal Inch) | 5.3150 |
| Cutting Direction | Right Hand |
| Single Or Double End | Single |
| Manufacturers Catalog Number | UBDE2500E4AQP |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.4764 |
