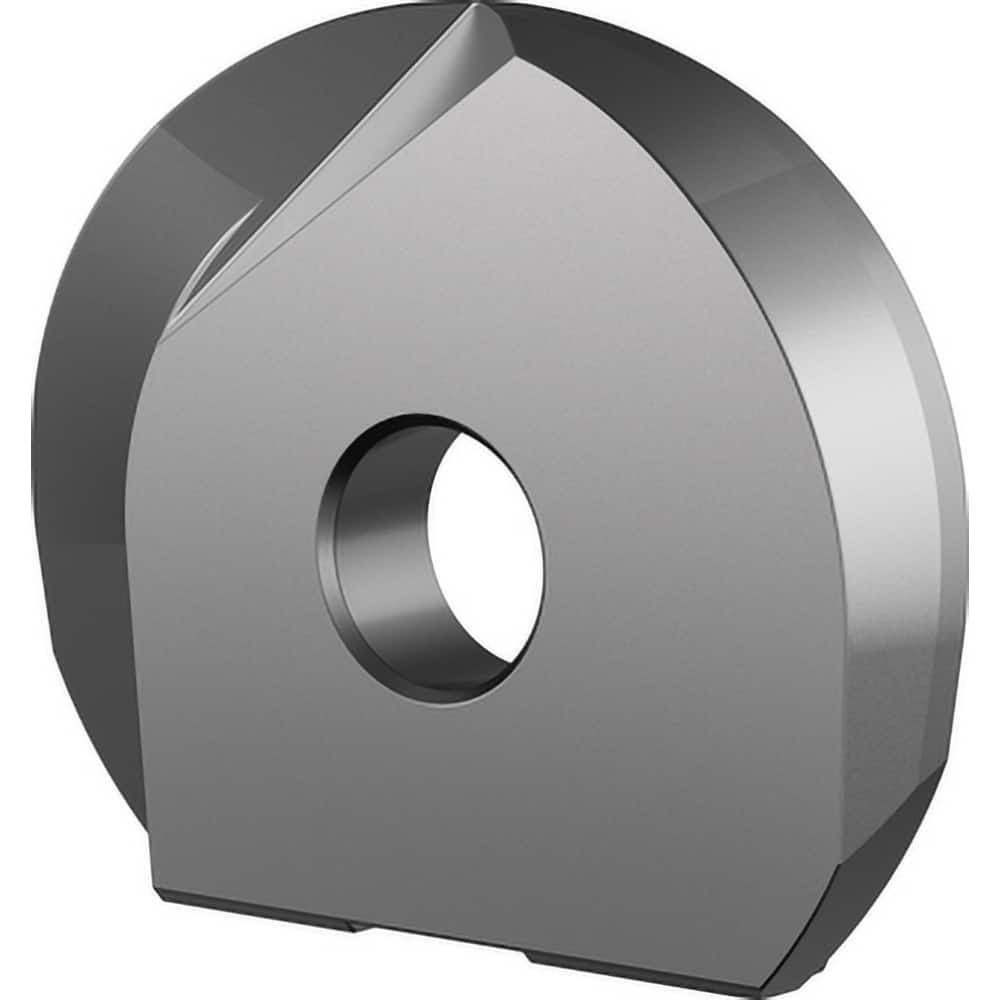

Milling Insert: KDMB0500M0ERGP, KCPK10, Cast Iron & Steel N/A Finish, 0.5000″ OAW
Item #: 13202189
Brand: Kennametal
Model #: 6784067
Product Specifications
| Insert Style | Ball Nose |
| Insert Size | KDMB0500 |
| Insert Material | Cast Iron; Steel |
| Manufacturer Grade | KCPK10 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Corner Radius (mm) | 6.35 |
| Insert Hand | Right Hand |
| Series | KDMB |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.00 |
| Ansi Code | KDMB0500M0ERGP |
| Iso Code | KDMB0500M0ERGP |
| Manufacturers Catalog Number | KDMB0500M0ERGP |
| Chip Breaker | GP |
| Cutting Direction | Right Hand |
| Coating/Finish | Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (Mm - 2 Decimals) | 12.70 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0984 |
| Length (Decimal Inch - 4 Decimals) | 0.4860 |
