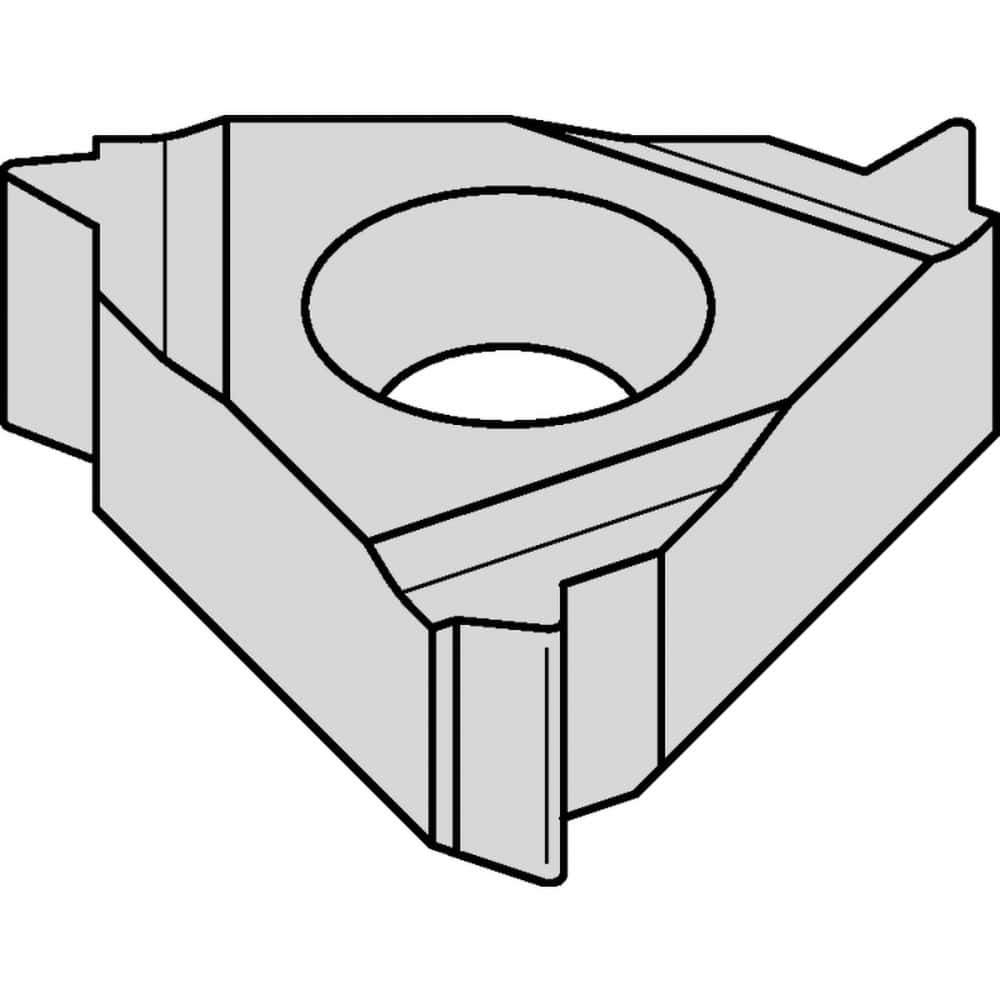

Laydown Threading Inserts; Insert Size Code: 8; Manufacturer Grade: KC5025; Threads Per Inch: 18.00; Thread Type: NPT; Thread Standard: NPT; Insert Hand: Right Hand; Thickness (mm): 2.00; Included Angle: 60; Series: LT Threading; Inscribed Circle (mm): 5.
Item #: 13201892
Brand: Kennametal
Model #: 6733755
Product Specifications
| Insert Size Code | 8 |
| Manufacturer Grade | KC5025 |
| Thread Type | NPT |
| Thread Standard | NPT |
| Insert Hand | Right Hand |
| Thickness (mm) | 2.00 |
| Included Angle | 60 |
| Series | LT Threading |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1696 |
| Corner Radius (Decimal Inch) | 0.0024 |
| Corner Radius (mm) | 0.06 |
| Number of Teeth Per Side | 1 |
| Manufacturers Catalog Number | LT08NR18NPT |
| Teeth Per Inch | 18.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0787 |
| Coating/Finish | TiAlN |
