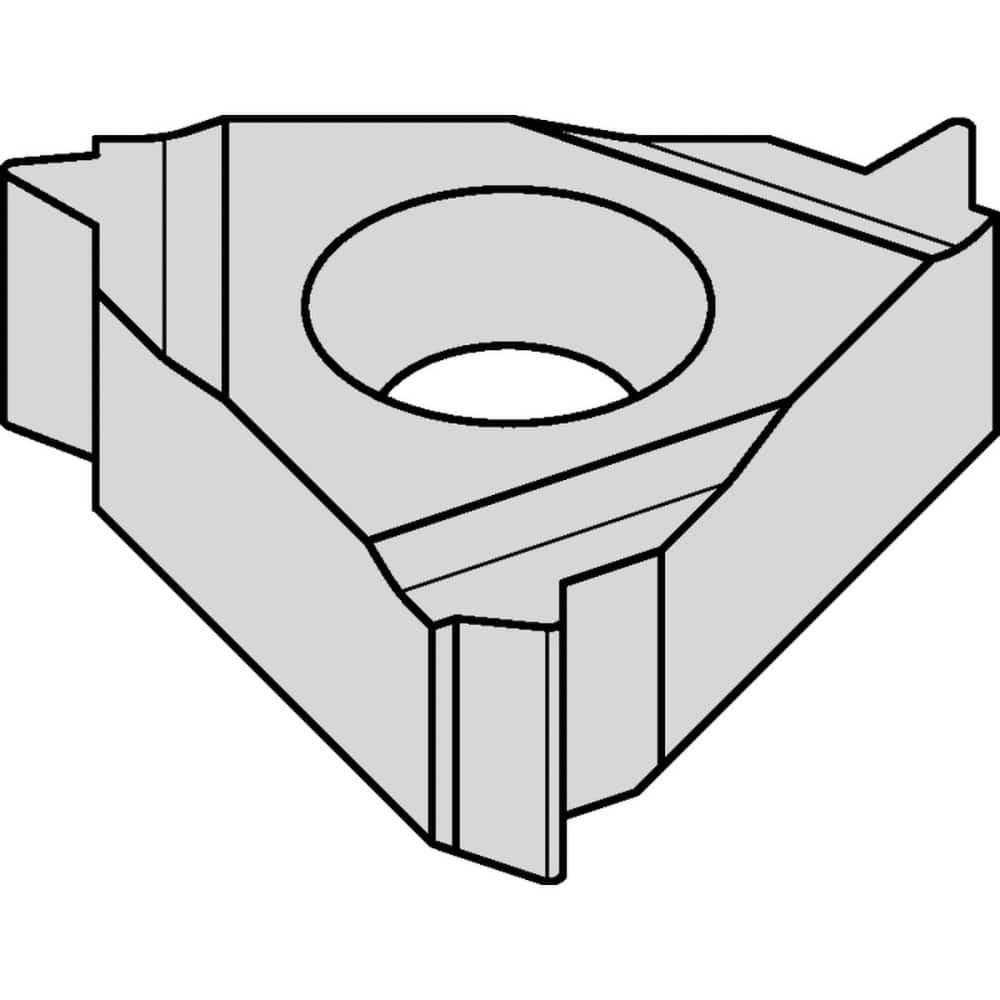

Laydown Threading Inserts; Insert Size Code: 8; Manufacturer Grade: KC5025; Threads Per Inch: 20.00; Thread Type: UN; Thread Standard: UN; Insert Hand: Right Hand; Thickness (mm): 2.00; Included Angle: 60; Series: LT Threading; Inscribed Circle (mm): 5.00
Item #: 13201884
Brand: Kennametal
Model #: 6733756
Product Specifications
| Insert Size Code | 8 |
| Manufacturer Grade | KC5025 |
| Thread Type | UN |
| Thread Standard | UN |
| Insert Hand | Right Hand |
| Thickness (mm) | 2.00 |
| Included Angle | 60 |
| Series | LT Threading |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Corner Radius (Decimal Inch) | 0.0029 |
| Corner Radius (mm) | 0.07 |
| Number of Teeth Per Side | 1 |
| Manufacturers Catalog Number | LT08NR20UN |
| Teeth Per Inch | 20.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0787 |
| Coating/Finish | TiAlN |
