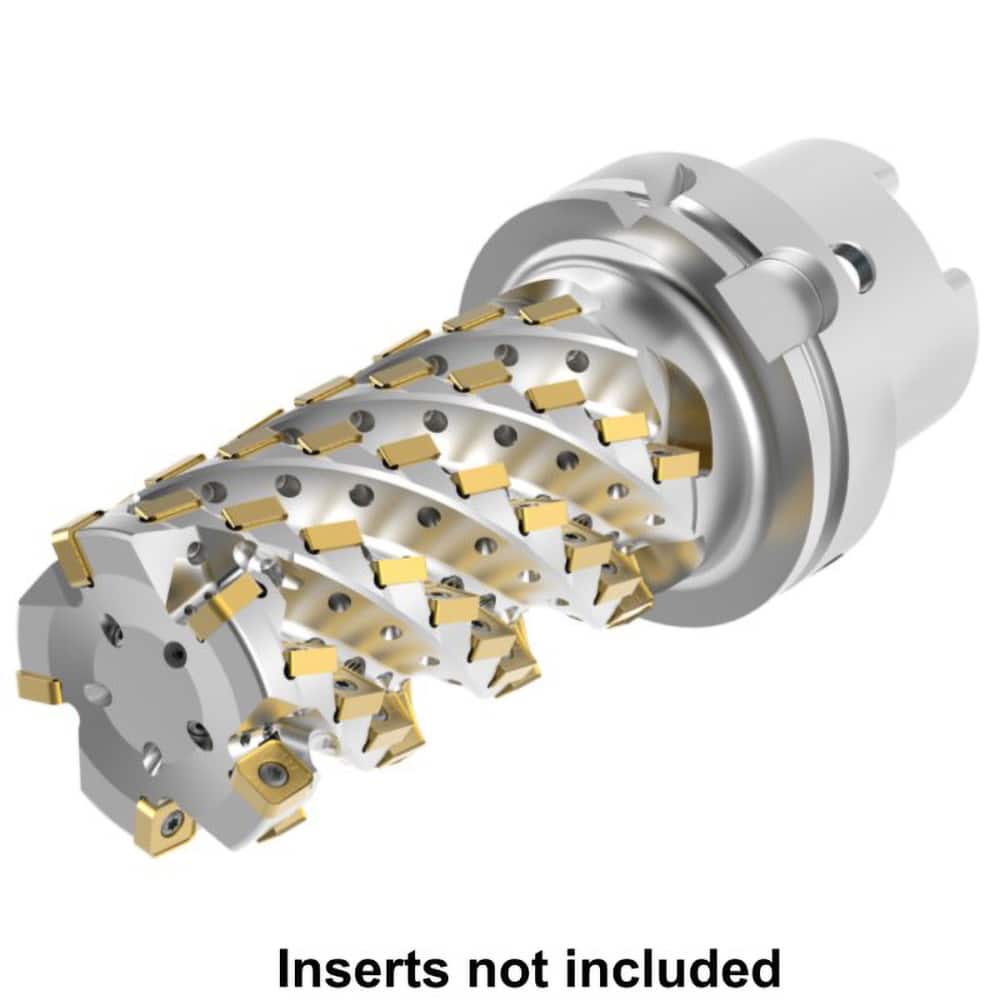

Indexable Square-Shoulder End Mill: 300S12H100AZU5AP526Z65, 3.0000'' Cut Dia, 5.2620'' Max Depth of Cut, Taper Shank Uses 65, SNHJ120624SNGDH Inserts, Through Coolant, 234.05 mm OAL
Item #: 13201710
Brand: Kennametal
Model #: 6565664
Product Specifications
| Minimum Cutting Diameter (mm) | 76.20 |
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (mm) | 76.20 |
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Depth of Cut (mm) | 133.67 |
| Maximum Depth of Cut (Decimal Inch) | 5.2620 |
| Cutter Style | Helical End Mill |
| Shank Type | Taper |
| Shank Taper Size | HSK100A |
| Overall Length (mm) | 234.05 |
| Overall Length (Decimal Inch) | 9.2150 |
| Series | HARVI Ultra 8X |
| Maximum RPM | 13000 |
| MSC/Manufacturer Number | HU8X300S12H100AZU5AP526Z65 |
| Insert Compatibility | SNHJ120624SNGDH |
| ISO Number | HU8X300S12H100AZU5AP526Z65 |
| Number Of Flutes | 5 |
| Number Of Cutter Inserts | 65 |
| Coolant Through | Yes |
