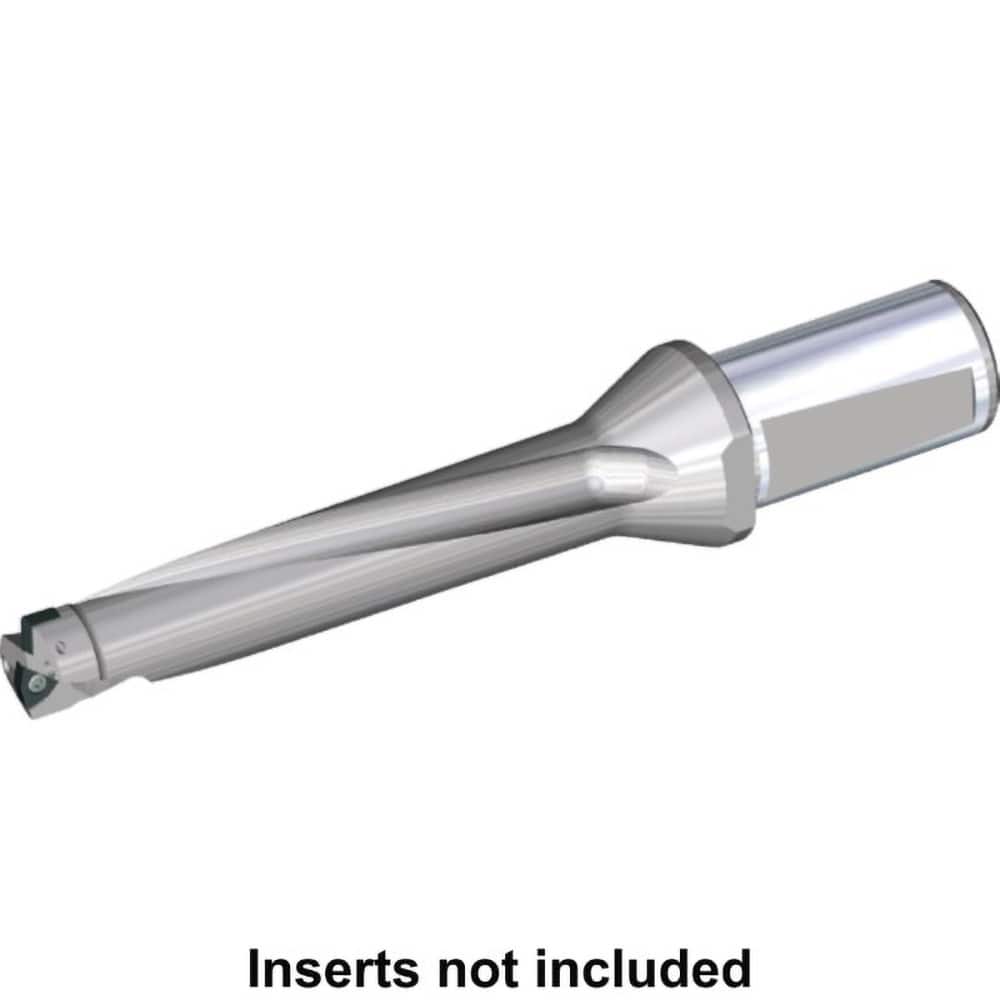

Indexable Insert Drills; Drill Style: DFSP; Maximum Drill Diameter (mm): 18.50; Drill Diameter (Decimal Inch): 0.7280; Maximum Drill Diameter (Decimal Inch): 0.7280; Drill Diameter (mm): 18.50; Maximum Drill Depth (Decimal Inch): 3.6420; Maximum Drill Dep
Item #: 13201496
Brand: Kennametal
Model #: 6075799
Product Specifications
| Drill Style | DFSP |
| Maximum Drill Diameter (mm) | 18.50 |
| Drill Diameter (Decimal Inch) | 0.7280 |
| Maximum Drill Diameter (Decimal Inch) | 0.7280 |
| Drill Diameter (mm) | 18.50 |
| Maximum Drill Depth (Decimal Inch) | 3.6420 |
| Maximum Drill Depth (mm) | 92.50 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFT0303..; SPGX0603.. |
| Drill Depth by Diameter Ratio | 5xD |
| Series | Drill Fix |
| Flute Length (Decimal Inch) | 4.0940 |
| Flute Length (mm) | 104.00 |
| Body Length (Decimal Inch) | 4.7830 |
| Shank Length (Decimal Inch) | 4.7830 |
| Shank Length (mm) | 45.00 |
| Overall Length/Projection (Decimal Inch) | 6.5550 |
| Overall Length/Projection (mm) | 166.50 |
| Insert Compatibility (Outside or Peripheral) | SPGX0603.. |
| Insert Compatibility | DFT0303..; SPGX0603.. |
| MSC/Manufacturer Number | DFSP185R5WD25M |
| Coolant Through | Yes |
