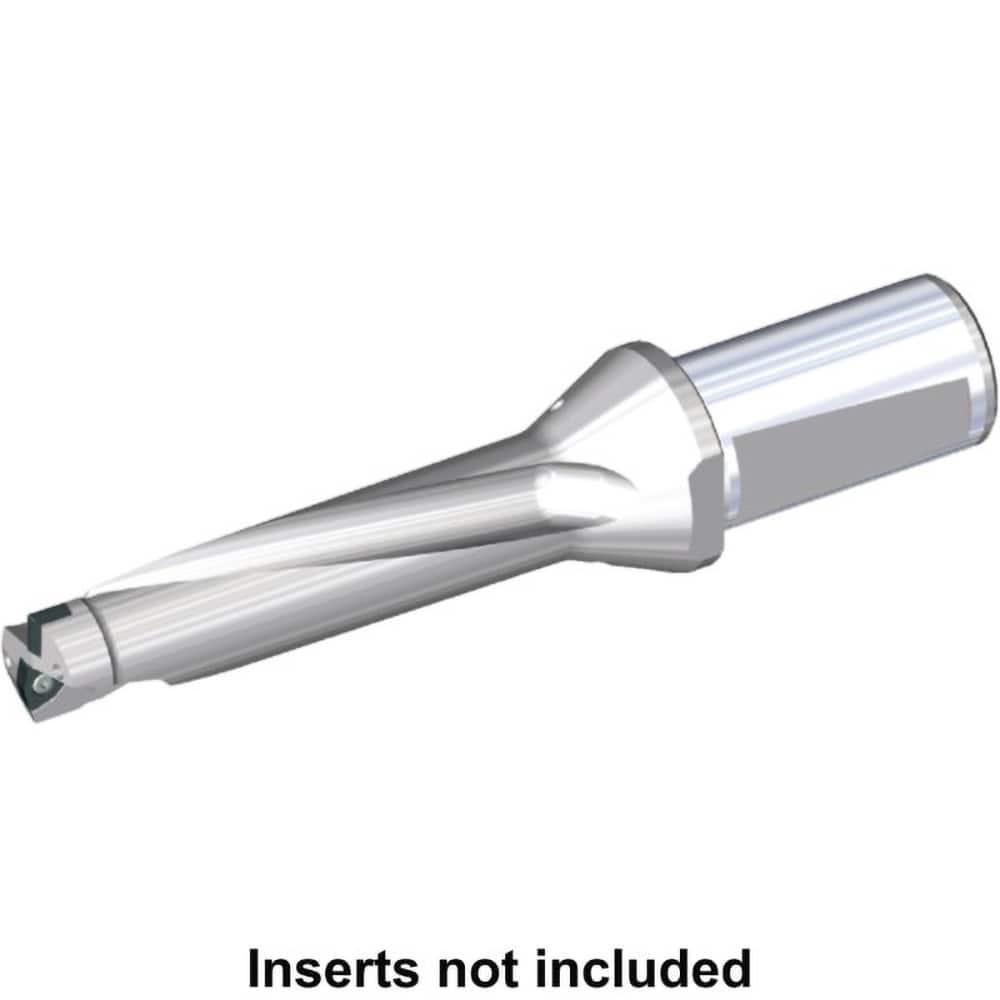

Indexable Insert Drills; Drill Style: DFSP; Maximum Drill Diameter (mm): 15.50; Drill Diameter (Decimal Inch): 0.6100; Maximum Drill Diameter (Decimal Inch): 0.6100; Drill Diameter (mm): 15.50; Maximum Drill Depth (Decimal Inch): 2.4410; Maximum Drill Dep
Item #: 13200795
Brand: Kennametal
Model #: 6075755
Product Specifications
| Drill Style | DFSP |
| Maximum Drill Diameter (mm) | 15.50 |
| Drill Diameter (Decimal Inch) | 0.6100 |
| Maximum Drill Diameter (Decimal Inch) | 0.6100 |
| Drill Diameter (mm) | 15.50 |
| Maximum Drill Depth (Decimal Inch) | 2.4410 |
| Maximum Drill Depth (mm) | 62.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Shank Diameter (mm) | 20.00 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | SPGX0502..; DFTX202.. |
| Drill Depth by Diameter Ratio | 4xD |
| Series | Drill Fix |
| Flute Length (Decimal Inch) | 2.6770 |
| Flute Length (mm) | 68.00 |
| Body Length (Decimal Inch) | 3.3860 |
| Shank Length (Decimal Inch) | 1.7720 |
| Shank Length (mm) | 45.00 |
| Overall Length/Projection (Decimal Inch) | 5.1580 |
| Overall Length/Projection (mm) | 131.00 |
| Insert Compatibility (Outside or Peripheral) | SPGX0502.. |
| Insert Compatibility | SPGX0502..; DFTX202.. |
| MSC/Manufacturer Number | DFSP155R4WD20M |
| Coolant Through | Yes |
